BOSCH GRL4000-80CHK Self-Leveling Rotary Laser Kit Level 360 - GRL4000-80CHK

BOSCH GRL4000-80CHK Self-Leveling Rotary Laser Kit Level 360 - GRL4000-80CHK

$2,149.00 USD
$2,149.00 USD
Sale Sold out
Shipping calculated at checkout.

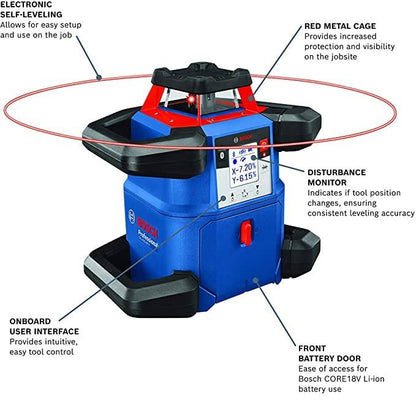

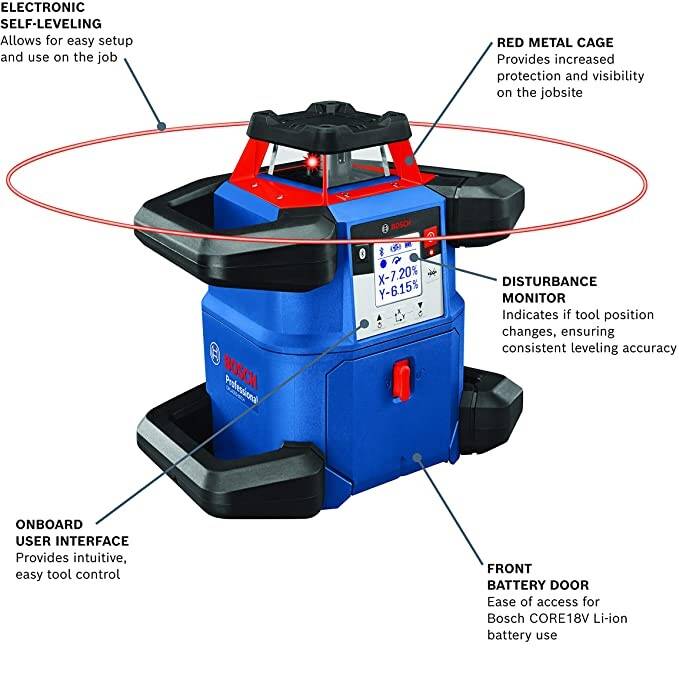

Bosch Self-Leveling Rotary Laser Kit Level 360 - GRL4000-80CHK

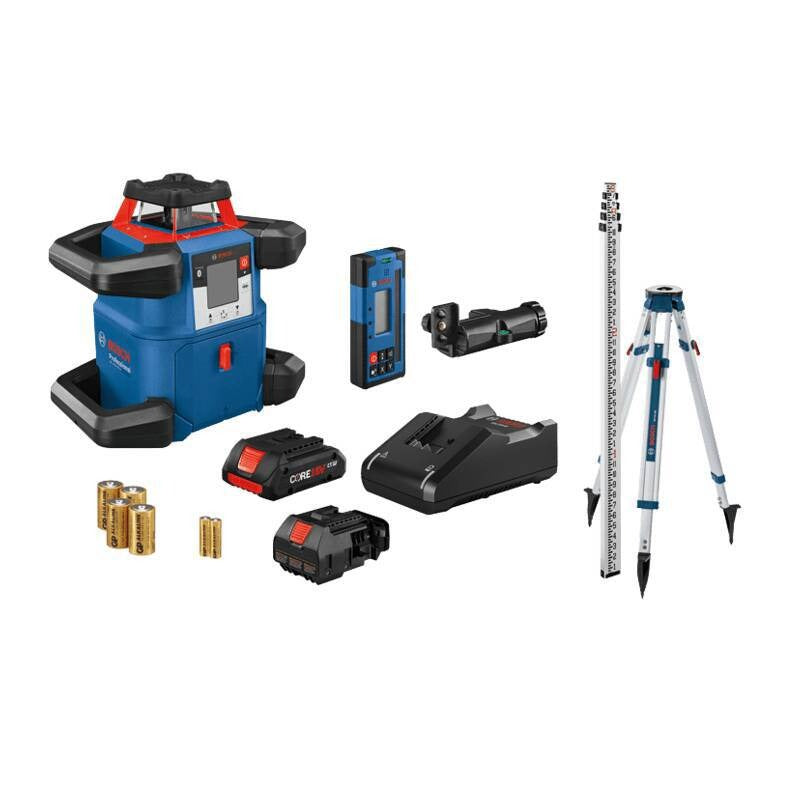

BOSCH GLR4000CHV Laser Kit INCLUDES
GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser
LR40 Laser Receiver with Bracket
1 each GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery
18V Battery Charger

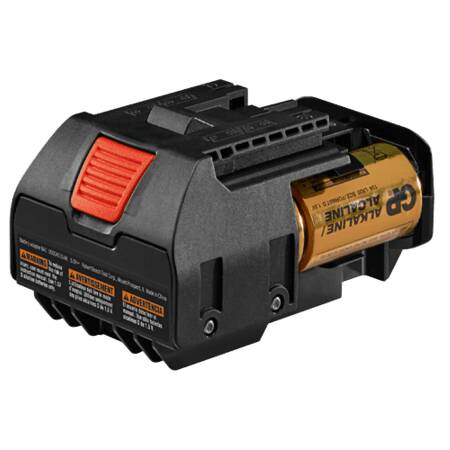

BA1 Alkaline Battery Adapter
4 each D Cell Alkaline Batteries
4 each AA Batteries

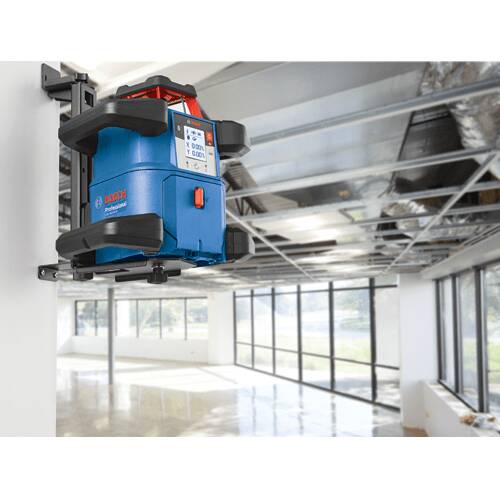

WM6 Wall Mount
RC5 Remote Control
Small Protective Carrying Case

BOSCH GRL4000CHV Laser Package BENEFITS
  • Fully featured rotary laser – has Dual Dial-In Slope, CORE18V power, Bluetooth® connectivity, uCAL user-calibration and more.
  • Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes

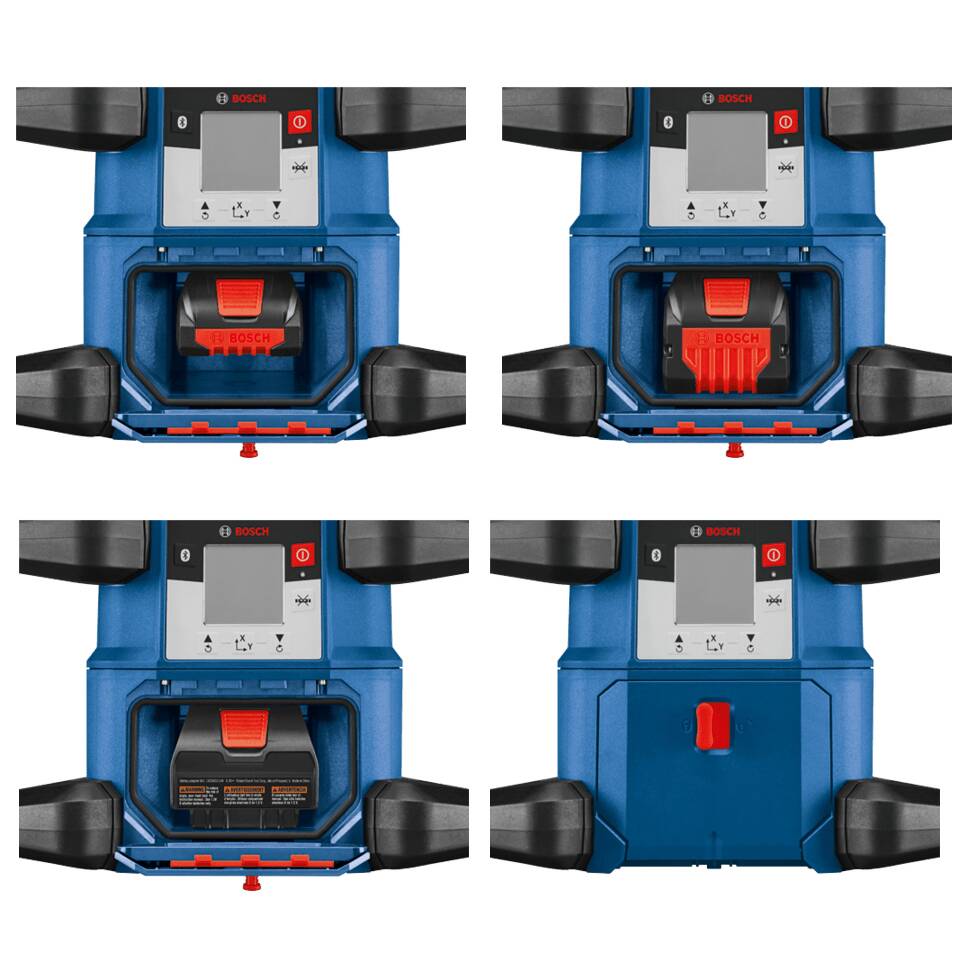

  • Dual Power Source – for extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
  • Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
  • Bluetooth® connectivity – connects to a mobile device, linking to the free Bosch Leveling Remote App, to control sleep mode, Dual Dial-In Slope, and more
  • uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite
  • Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode
  • Vertical-beam functionality – provides a vertical beam at 90° point for layout, squaring and plumb applications
  • Electronic self-leveling – allows for easy setup and use on the job
  • Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
  • Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions
  • Comprehensive kit – includes a remote control, 18V 4.0 Ah battery and charger, alkaline battery adapter, wall mount, laser receiver, aluminum tripod, sturdy grade rod and durable hard carrying case
BOSCH GRL4000-80CHV TECHNICAL DATA
BOSCH GRL4000CHVK Laser Package SPECIFICATIONS
Accuracy ± 1/16 in. @ 100 ft. Horizontal Mode ± 1/8 in. @ 100 ft. Vertical Mode
Battery Lithium-Ion Battery
Battery Voltage
 18 Volt
Height 11 inches
IP Rating
 IP68
Laser Diode
 635 nm, <1mW
Length 12.8 inches
Leveling Type
 Self-Leveling, Up to 5°
Material Plastic Composite
Mounting Thread
 5/8-11
Operating Temperature
 14° F ~ 122° F
Range Up to 4,000 feet (diameter)
Weight 8.2 lbs
Width 7.4 inches
Warranty 1 Year on laser, Extended to 2 Years on laser with online product registration.

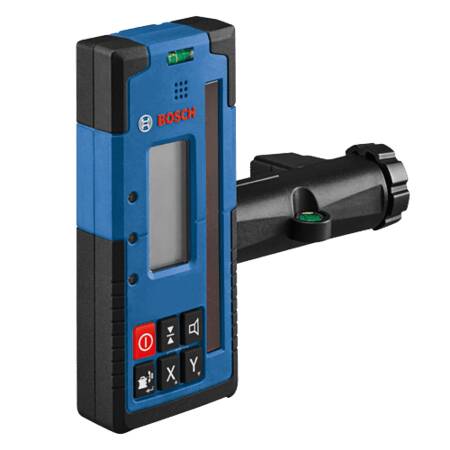

 DELUXE BOSCH LR40 Rotary Laser Receiver INCLUDED IN GLR4000-80CH PACKAGE

2,000 Ft. Rotary Laser Receiver
The Bosch LR40 Rotary Laser Receiver is designed to increase the GRL4000-80CH and GRL4000-80CHV rotary laser detection up to 2,000 Ft., with a dual-sided backlit LCD display for use in darker areas or outdoors on both sides of the receiver. It has built-in X and Y-axes buttons that allows for elevation and cut-and-fill calculations in both axes up to ±8.5°. The display illuminated large, easy-to-see indicators, including up/down arrows, center line, accuracy level, battery levels and audio signal. It also has LED indicators, to provide easy visual readout and simple operation. The oversized laser detection area helps find the laser beam faster, making it easier to start setting level. The receiver provides convenience features such as built-in magnets for secure attachment to metal surfaces, an adjustable audio indicator, intuitive six-button keypad, receiver vial, attachment hook and ergonomic soft grip.

BOSCH LR40 Rotary Laser Receiver INCLUDES
  • LR40 2,000 Foot Rotary Laser Receiver

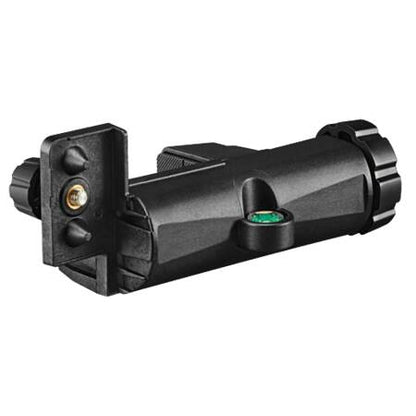

  • Mounting Bracket
  • (2) AA Batteries

BOSCH LR40 Rotary Laser Receiver BENEFITS
  • Receiver to extend working range – increases rotary detection up to 2,000 Ft., with easy-to-see LED indicators, adjustable audio
  • Dual-sided backlit LCD display – illuminates easy-to-see up/down arrows, center line, accuracy level, battery levels and more
  • Dual-sided indicators – provide easy visual readout on both sides of the receiver
  • Oversized detection area – enables fast laser reception
  • Built-in magnets – allow for secure attachment to metal surfaces
  • Adjustable audio indicator – provides clear signal of on-grade position and facilitates precise plus/minus control
  • Intuitive six-button keypad – enables simple operation and center line function in both X and Y axes
  • Receiver vial – helps ensure accurate leveling results
  • Ergonomic soft grip – provides secure handling and comfort

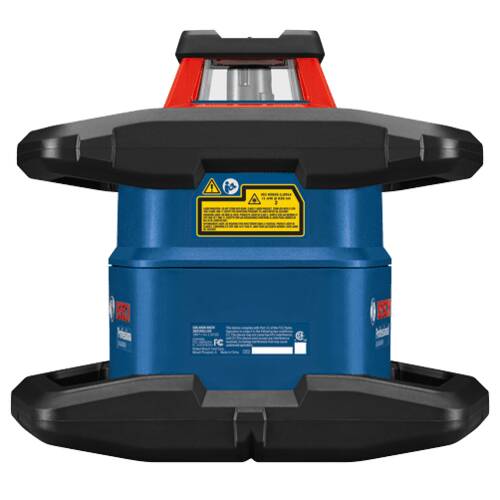

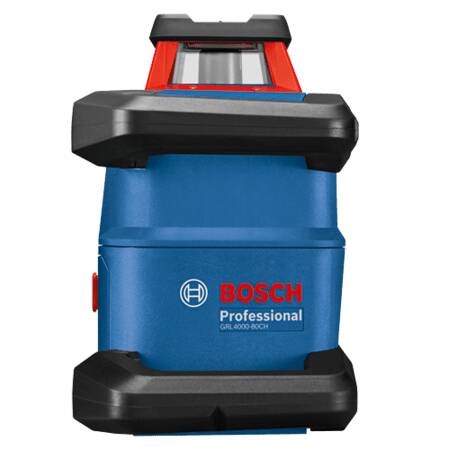

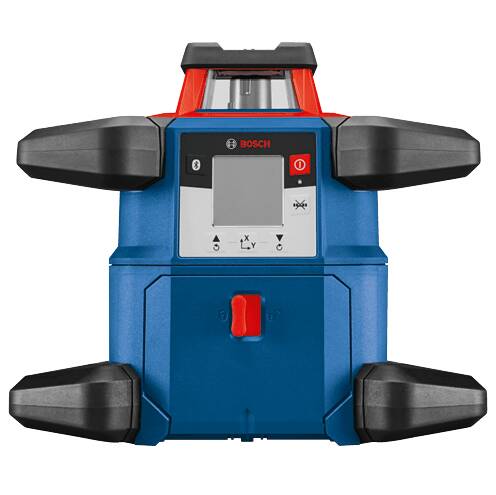

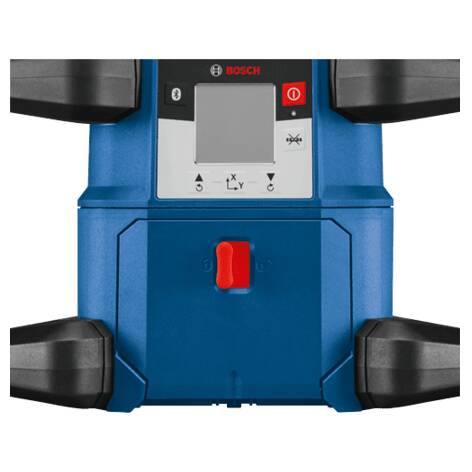

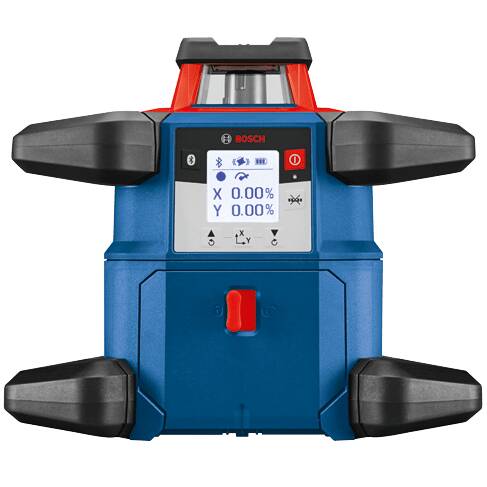

 Bosch GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser
The Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser has it all, with Dual Dial-In Slope, CORE18V Li-ion power, Bluetooth connectivity, user-calibration and more. The Dual Dial-In Slope feature allows the user to adjust the slope angle on the laser on both the X and Y-axes. Powered by a Bosch CORE18V battery, providing extended runtime, the rotary laser has a cage overmold, an innovative handle design and is built to IP68 standards. The GRL4000-80CHV has Bluetooth connectivity, uCAL user-calibration, an accuracy of up to ±1/16 In. at 100 Ft. in horizontal applications, and a range of up to 4,000 Ft. with the LR40 laser receiver.

GRL4000-80CHV KEY FEATURES

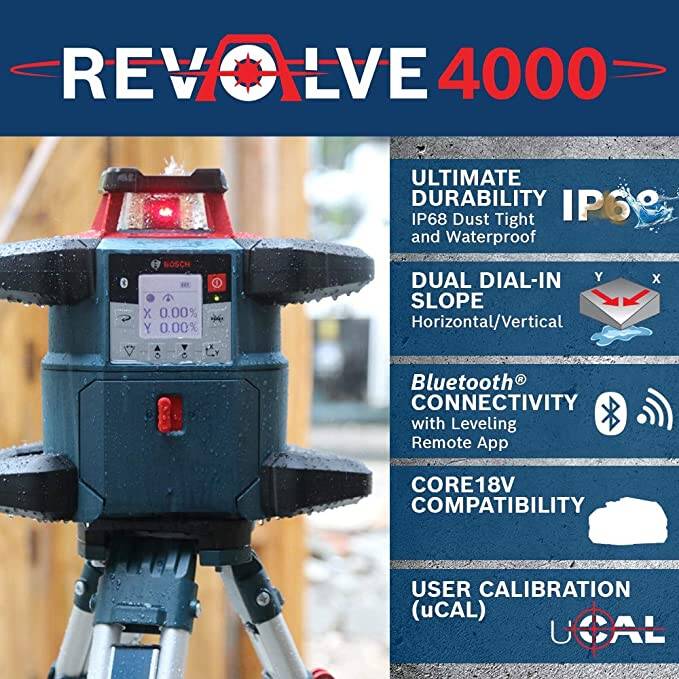

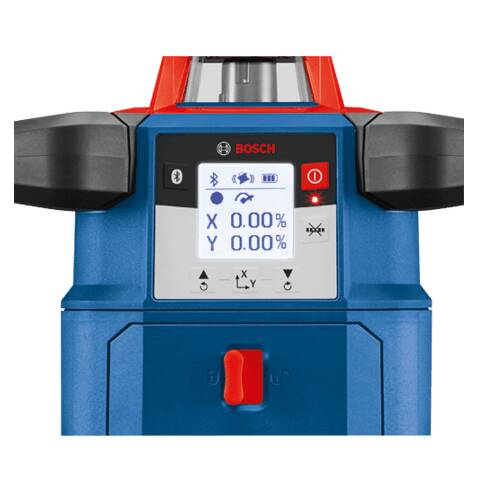

Dual Dial-In Slope uCAL & Bluetooth CORE18V Batteries Ultimate Jobsite Durability
Allows slope angle adjustment on both X and Y aces up to 8.5% User-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite For extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries Engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites
