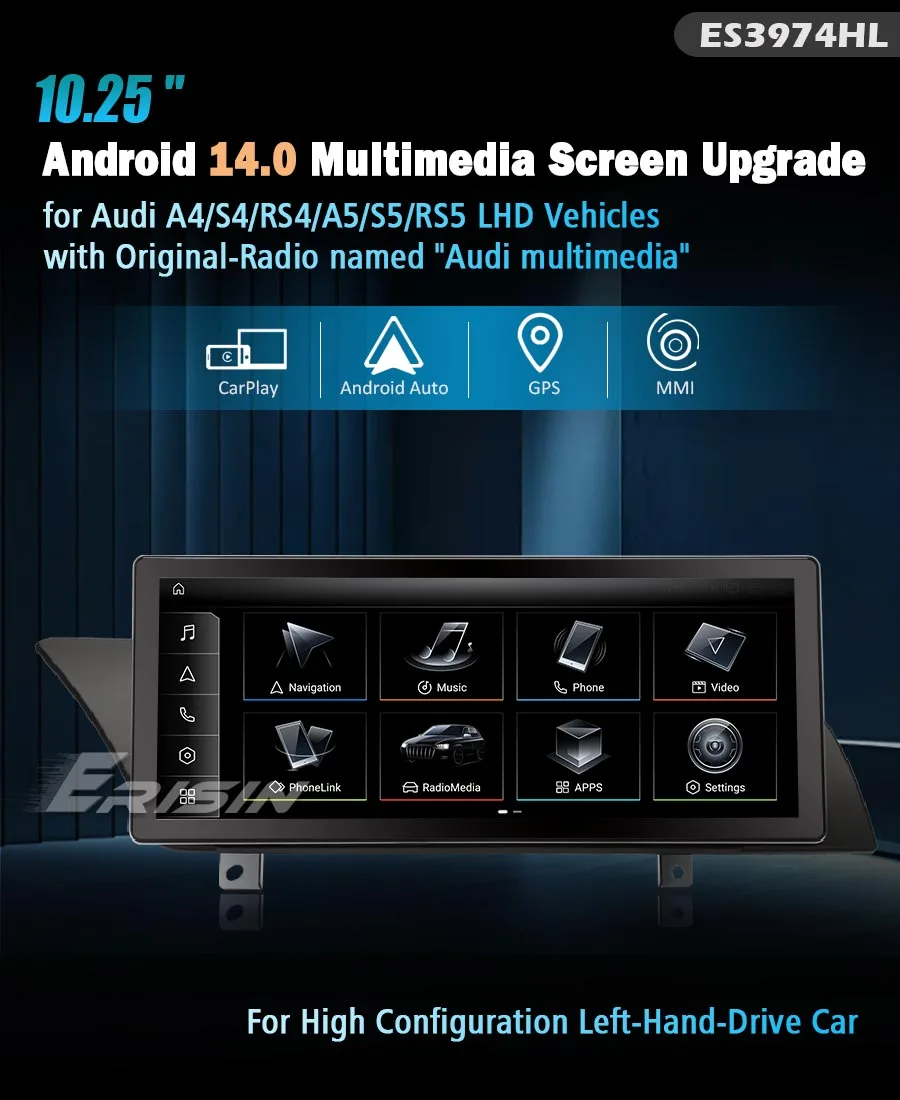

Key Features:

- Adopt the newest ultra HD 10.25 Inch super wide IPS Screen with Resolution: 1920*720 Pixels.
- Latest Android 14.0 Operating System, Qualcomm Snapdragon 668S chips, 11nm Technology, Octa-Core Processor.
- 4* Kryo 240Gold 1.6GHz + 4* Kryo 240Silver 1.8GHz 64-bit CPU Architecture, Adreno 610 GPU, benchmark score does go above 200,000.
- Built-in 4GB RAM and 64GB ROM, and supports 2 USBs up to 2* 256GB extended storage.

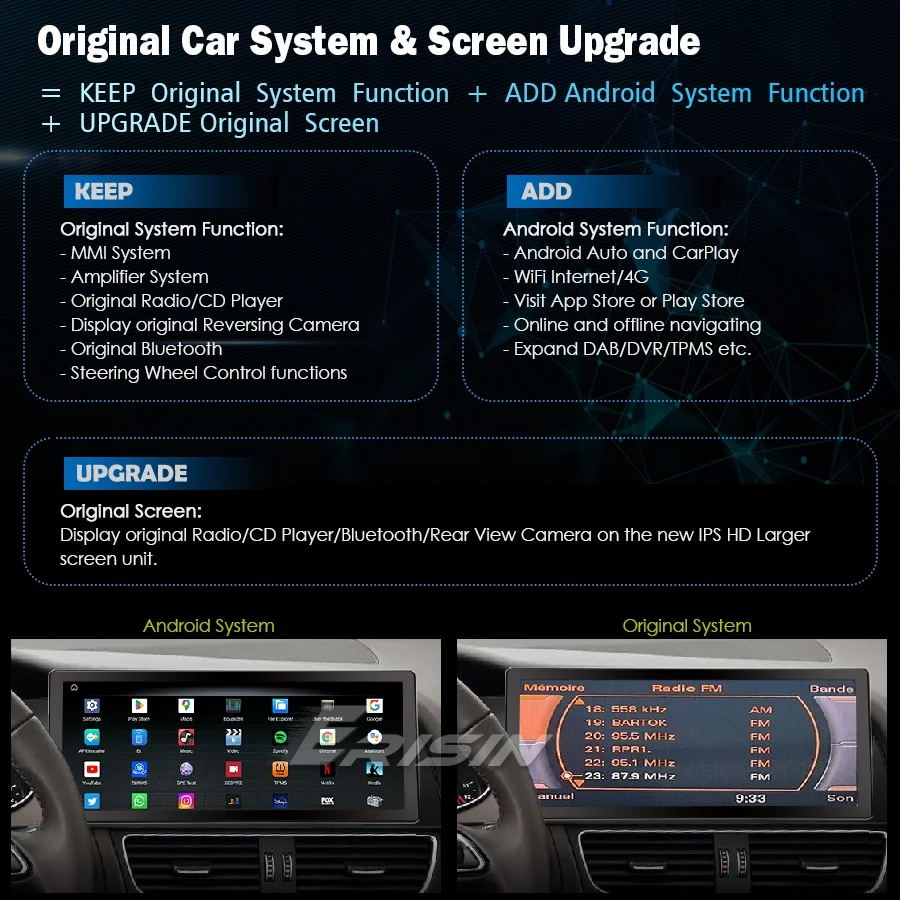

- Can be connected with OEM Radio/CD Player to use, keep original Radio/CD player function and not destroy original cable.

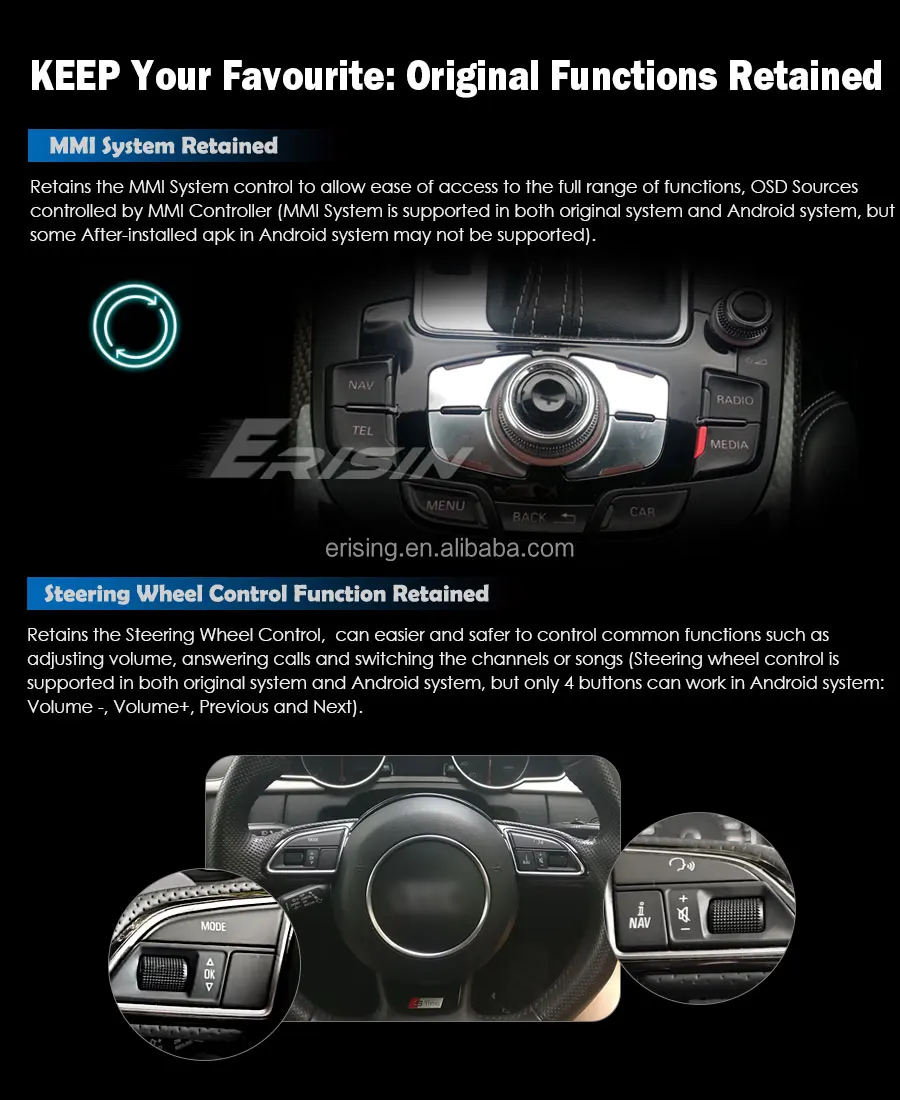

- Built-in CAN-Bus Decoder, compatible with most of the steering wheel control functions and original car MMI control knob and buttons.

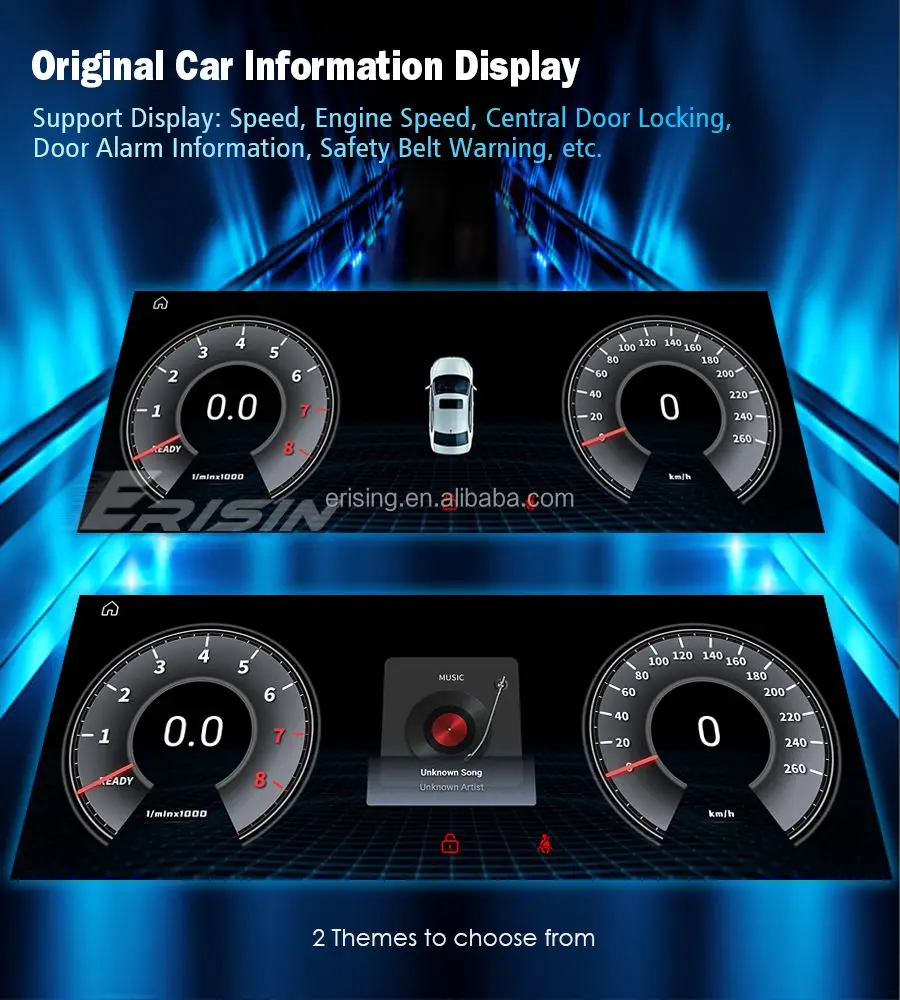

- Support Original Car Information Display: Speed, Engine Speed, Central Door Locking, Door Alarm Information, Safety Belt Warning, etc.

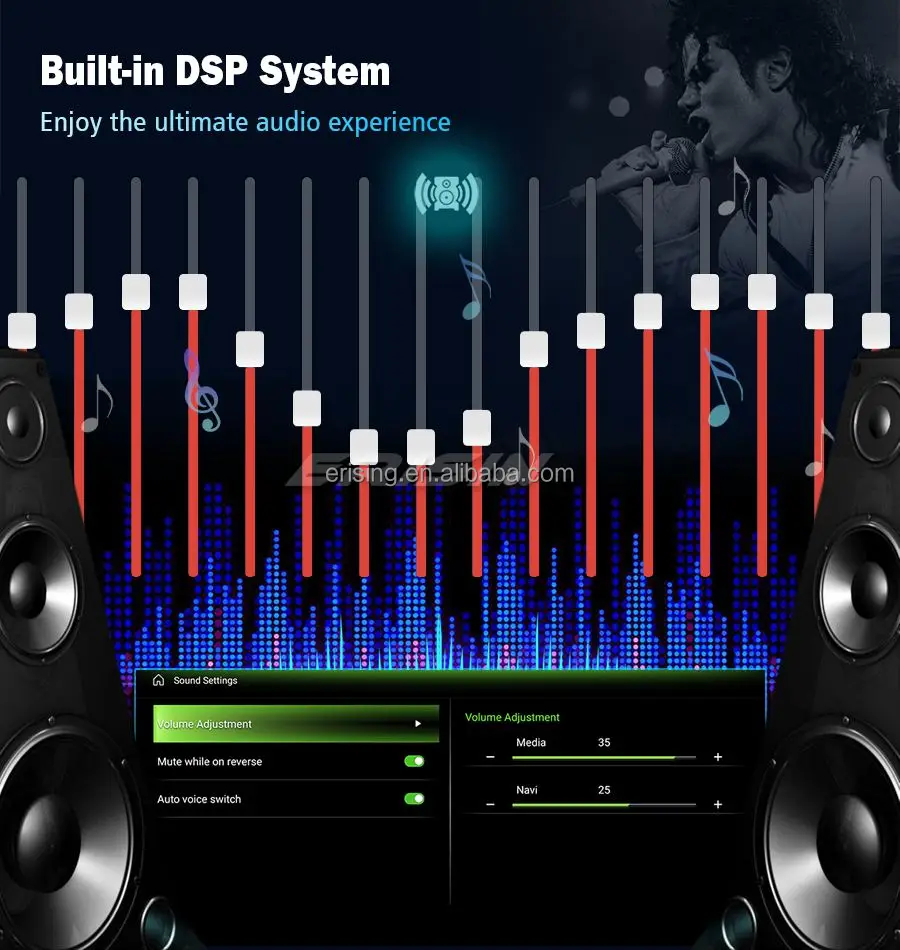

- Built-in DSP System, 16-Band EQ Selections, Flat/Pop/Rock/Jazz/Classical available, which brings the perfect sound effect to your car.
- Built-in Dual Band WiFi for Internet, supports 2.4GHz and 5GHz WiFi networking to go online faster.
- Built-in 4G LTE Module for Internet, supports 99% of carriers in the world, supports micro SIM card, just insert your 4G SIM Card, no matter where you are driving, you will enjoy the fun from internet surfing, making it possible for online navigation/ music /movie, etc.

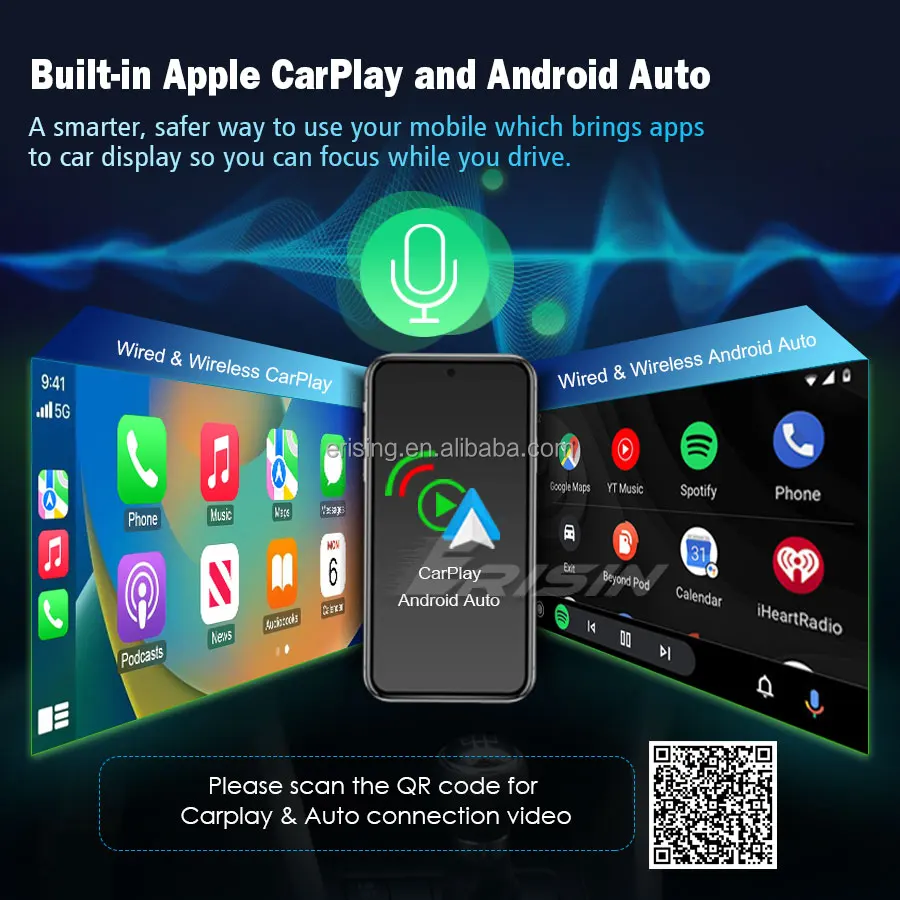

- Built-in Wired & Wireless Apple CarPlay and Android Auto module, you don't need to use another adapter, just connect your iPhone / Android phone to this unit via USB or Bluetooth to use the CarPlay / Android Auto function.
- Built-in the Latest Bluetooth 5.1 which supports Hands-free Calls, BT-Music, Phone Book Synchronise, Display Recent Calls.
- Built-in GPS Module, which supports offline GPS Navigation, GPS function is ready to use.

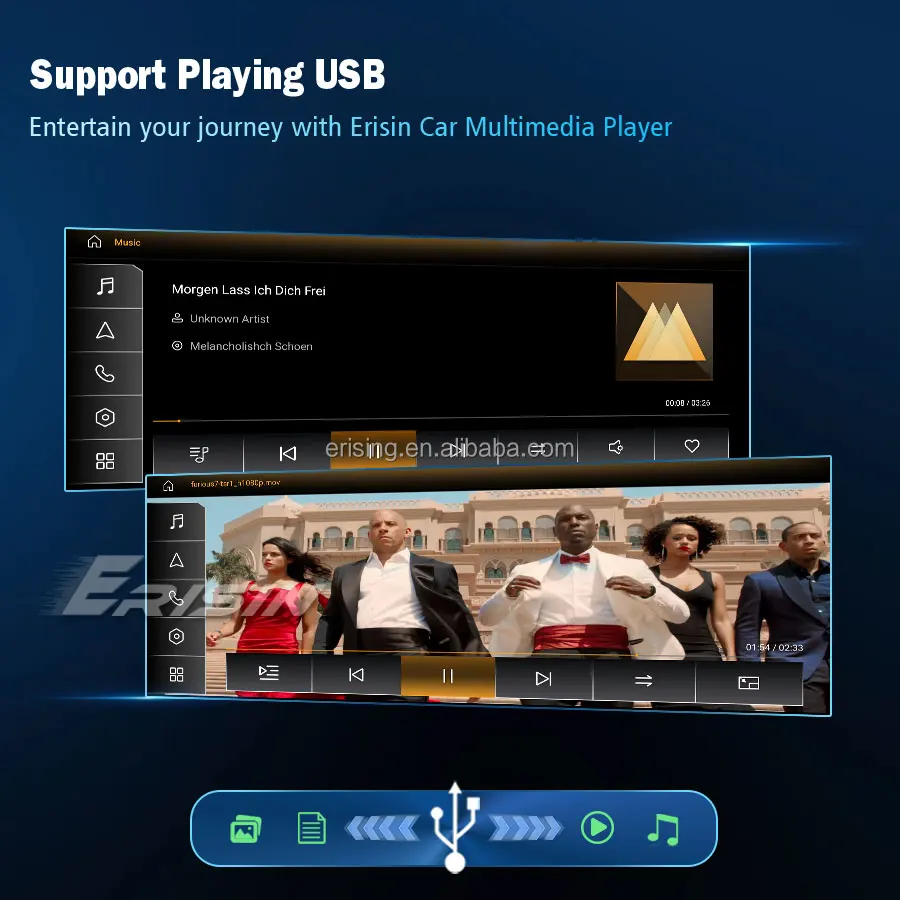

- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB.
- Support Reversing Camera with formats of CVBS and the newest AHD 720P-25FPS / 720P-30FPS / 1080P-25FPS / 1080P-30FPS.

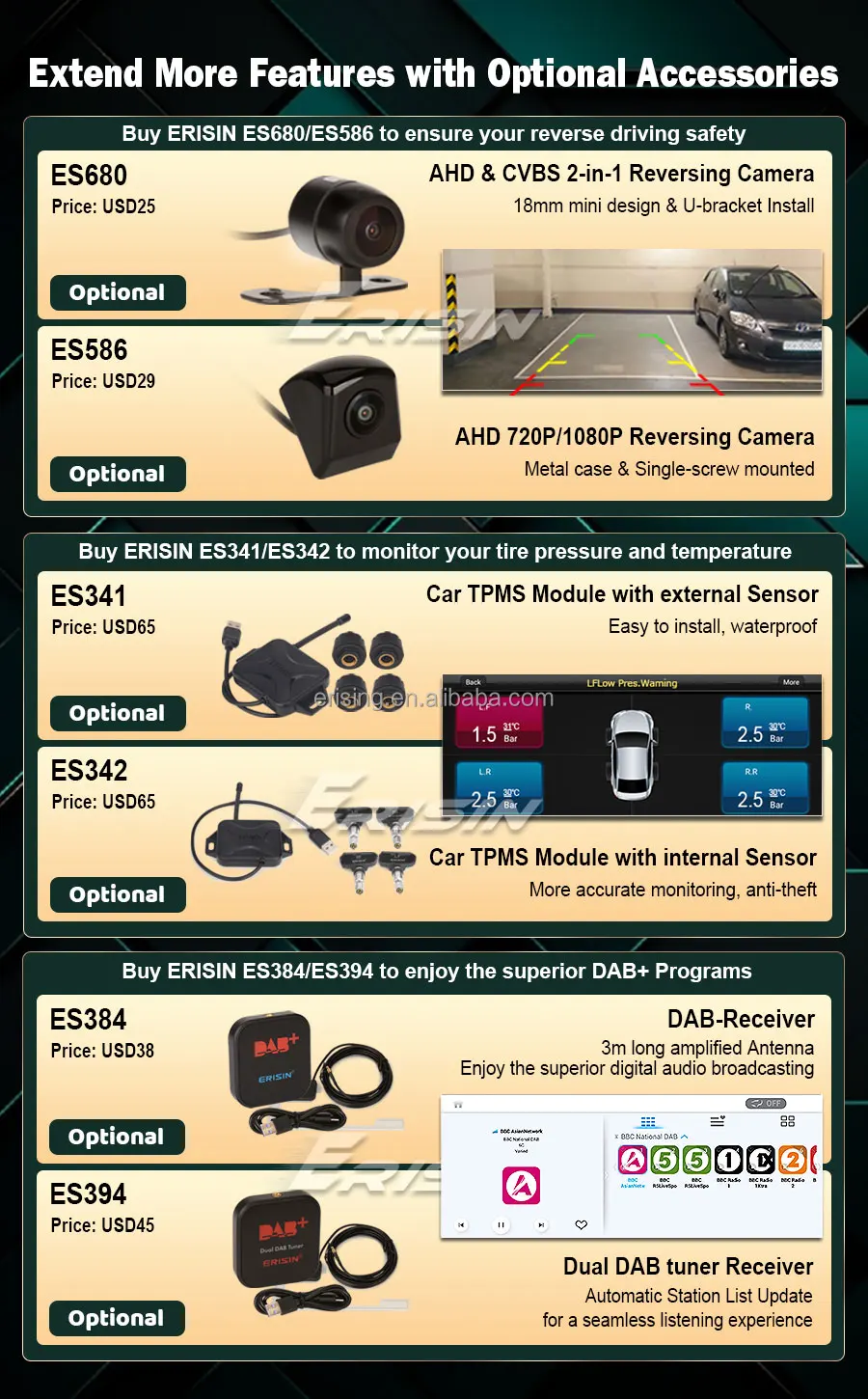

- Support extended functions such as USB-DAB-Receiver, USB TPMS-Monitor, Front-DVR etc. Input & Display & Control.

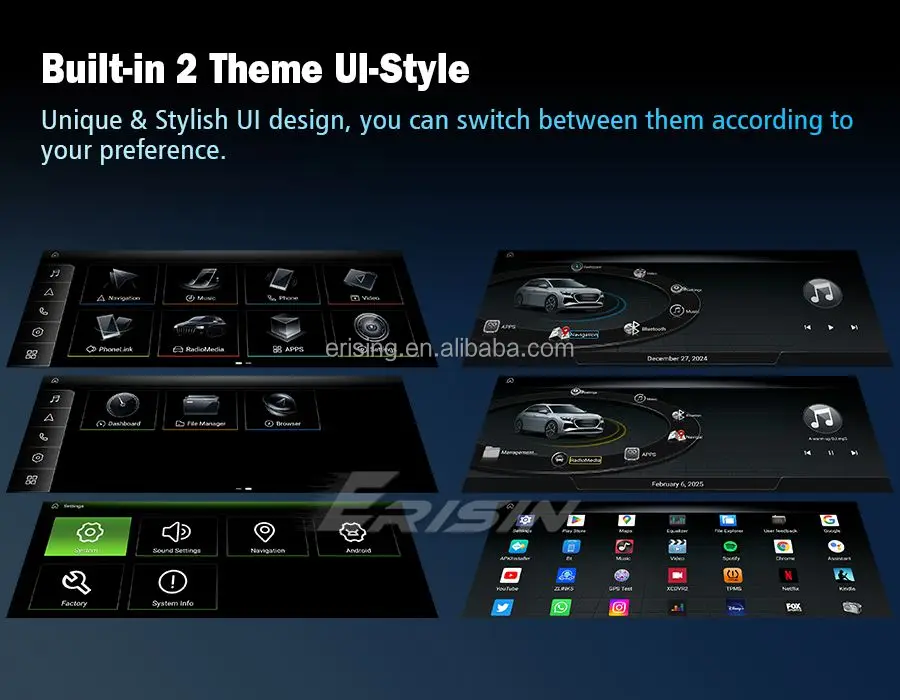

- Built-in 2 Theme UI-Style, our unique design, you can choose your favorite style.

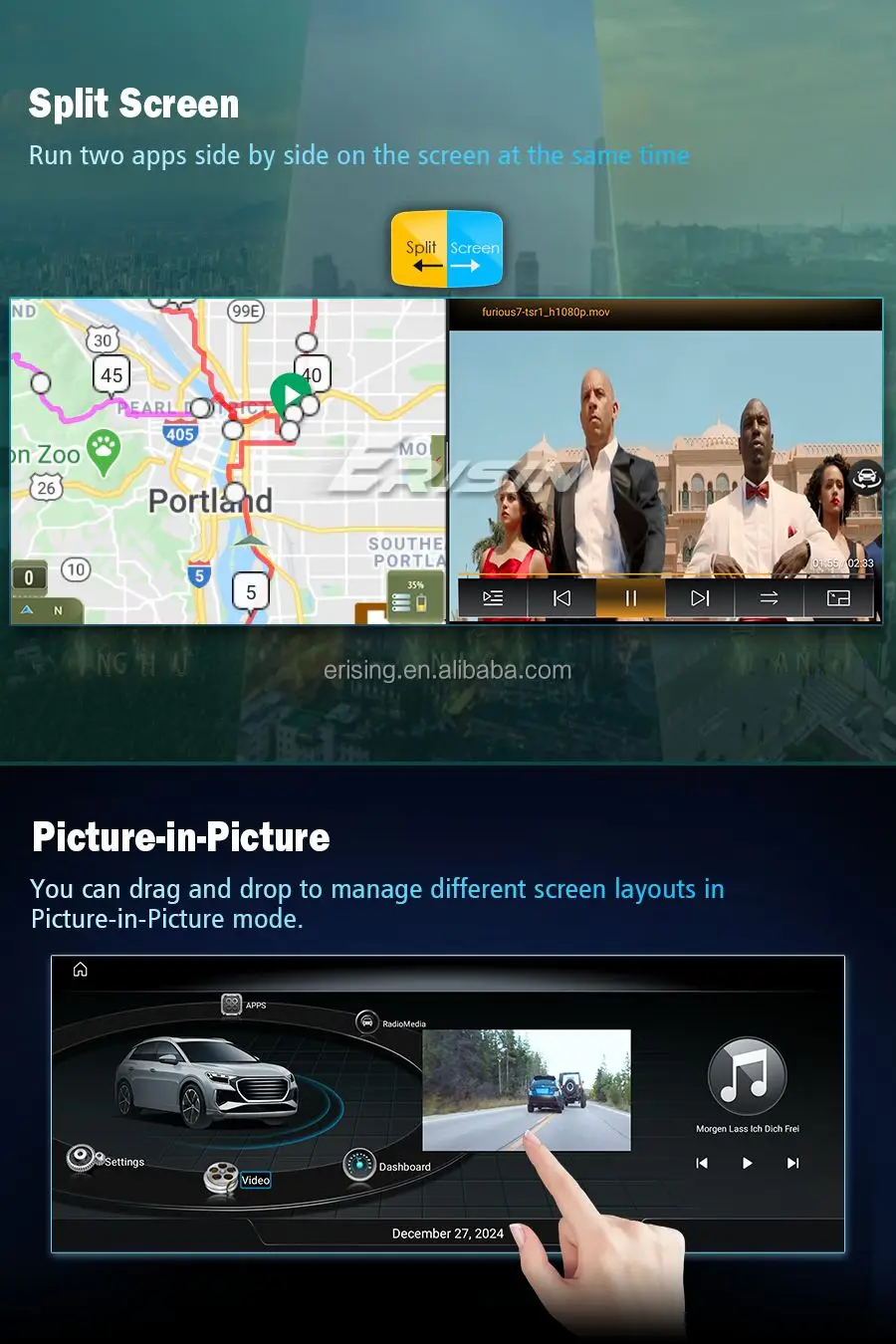

- Support Picture-in-Picture Mode. Customise your driving interface with our PiP settings.
- Support Split Screen, you can run two apps side by side.

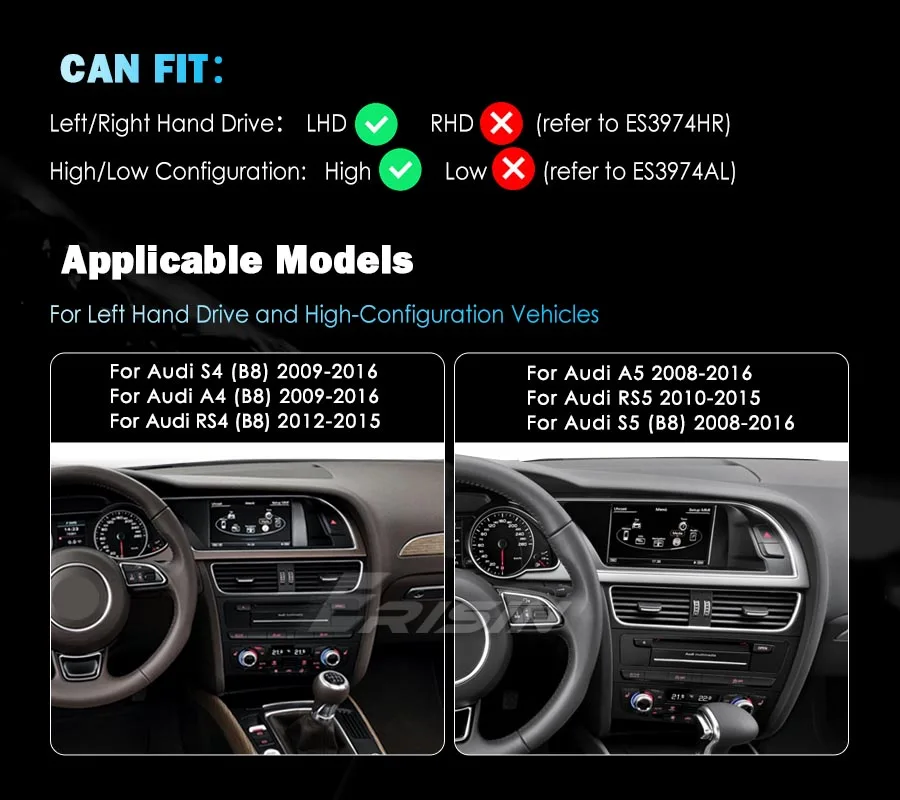

Compatible Models & Years:

For Audi Left Hand Drive and High-Configuration Vehicles with original Radio named "Audi multimedia"
- For Audi A4 (B8) 2009-2016
- For Audi S4 (B8) 2009-2016
- For Audi RS4 (B8) 2012-2015
- For Audi A5 2008-2016
- For Audi S5 (B8) 2008-2016
- For Audi RS5 2010-2015

Important Note:

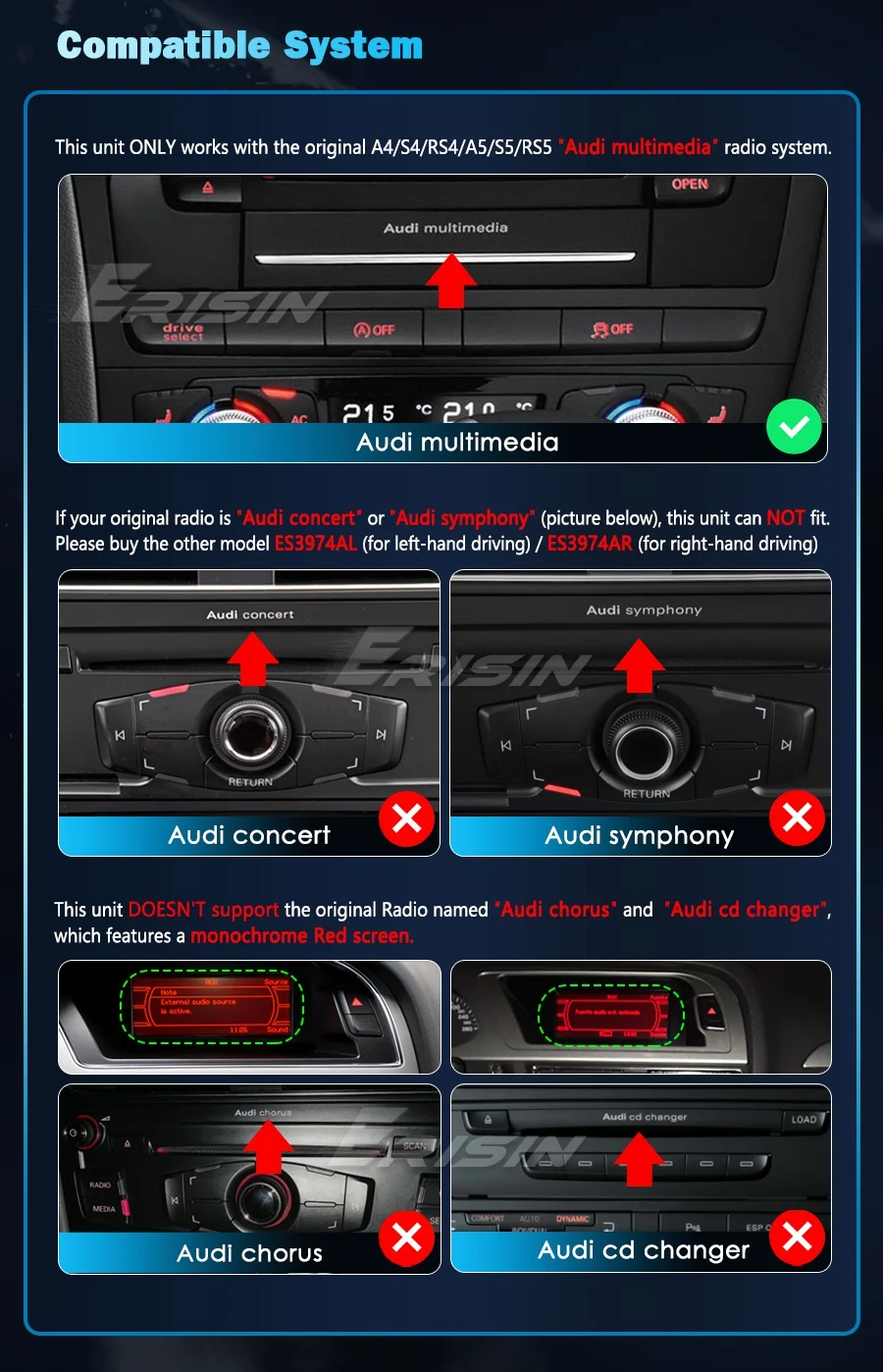

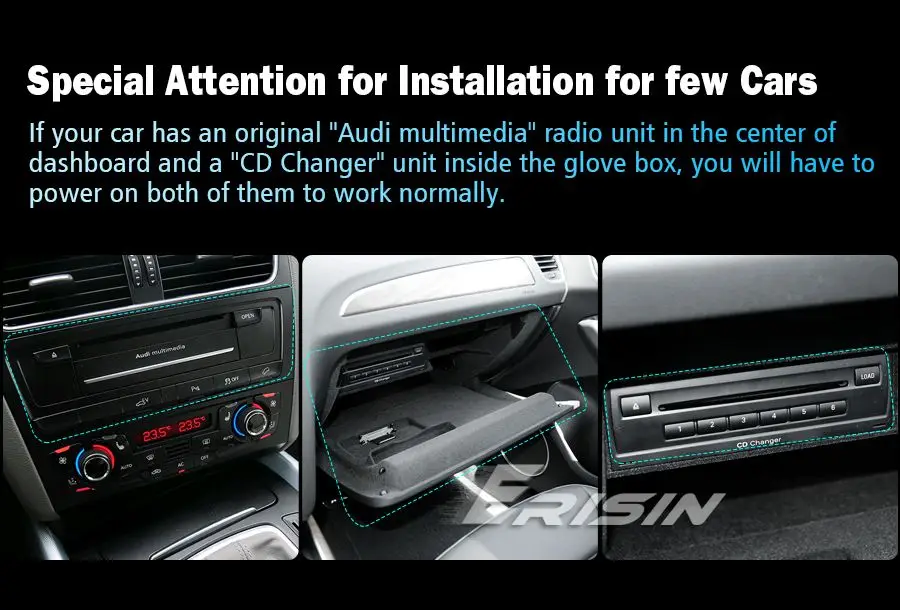

This unit can fit Audi A4/S4/RS4/A5/S5/RS5 Left Hand Drive and High-Configuration Vehicles with original Radio named "Audi multimedia" ONLY. To make sure the item fits your car, please check whether the shape of the center console or the original car radio of your vehicle is the same as the description in our listing before purchasing. Or please provide more detailed information about your car, such as model, year, and configuration, and take several pictures to show your car's dashboard, original car radio/CD player, the car's MMI control knob, etc., our customer service team will offer the professional advice about the compatibility.
You may need to know:
1. This unit DOESN'T support the original Radio named "Audi cd changer" and "Audi chorus", which features a monochrome Red screen.
2. If your Vehicle is Right Hand Drive, please add USD 15 to buy the other model ES3974HR.
3. If your Vehicle is Low-Configuration with the original Radio named "Audi concert" / "Audi symphony", this unit can NOT fit. Please buy the other model ES3974AL (for left-hand driving) / ES3974AR (for right-hand driving).
(Please check the picture in our listing description on how to distinguish between Low-Configuration and High-Configuration).

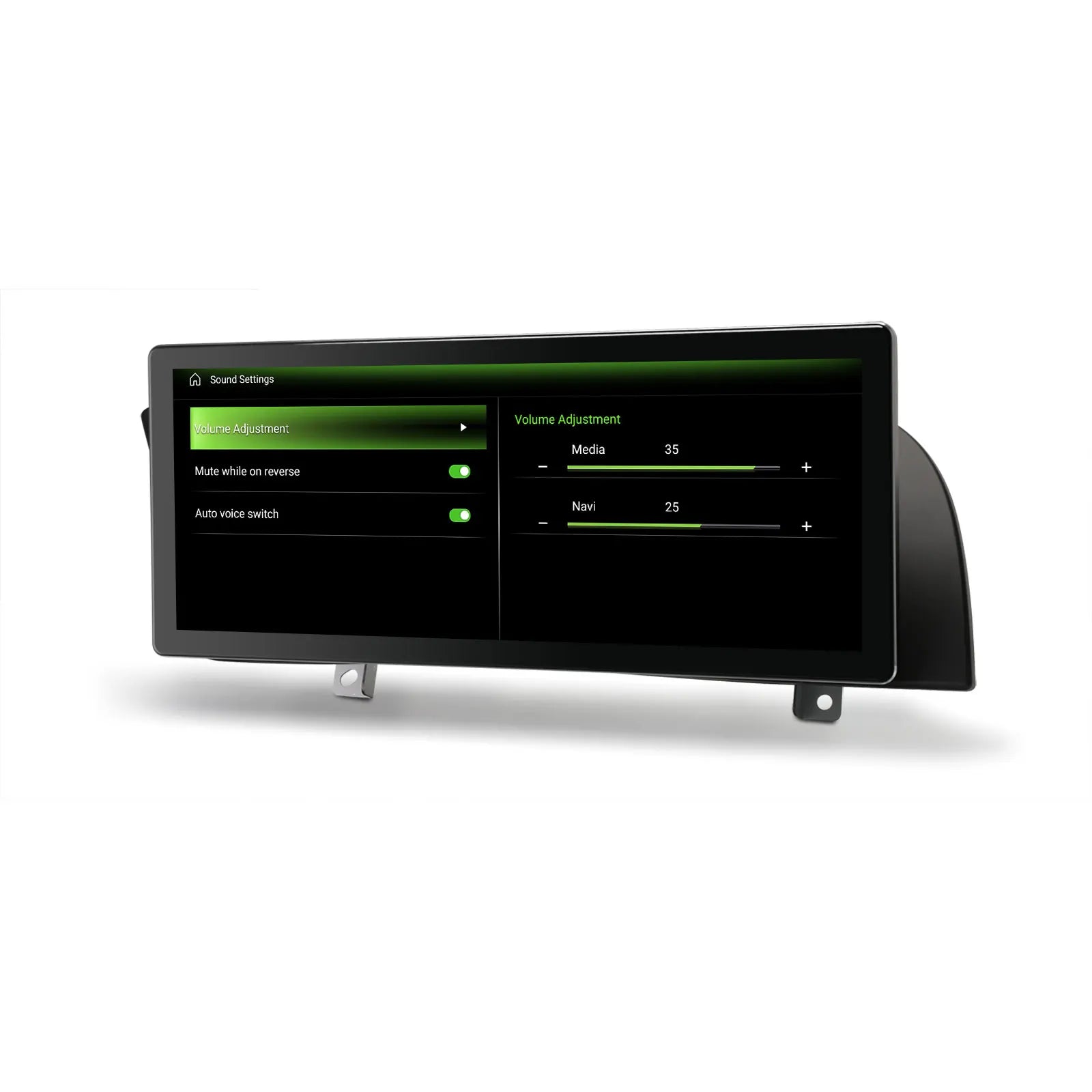

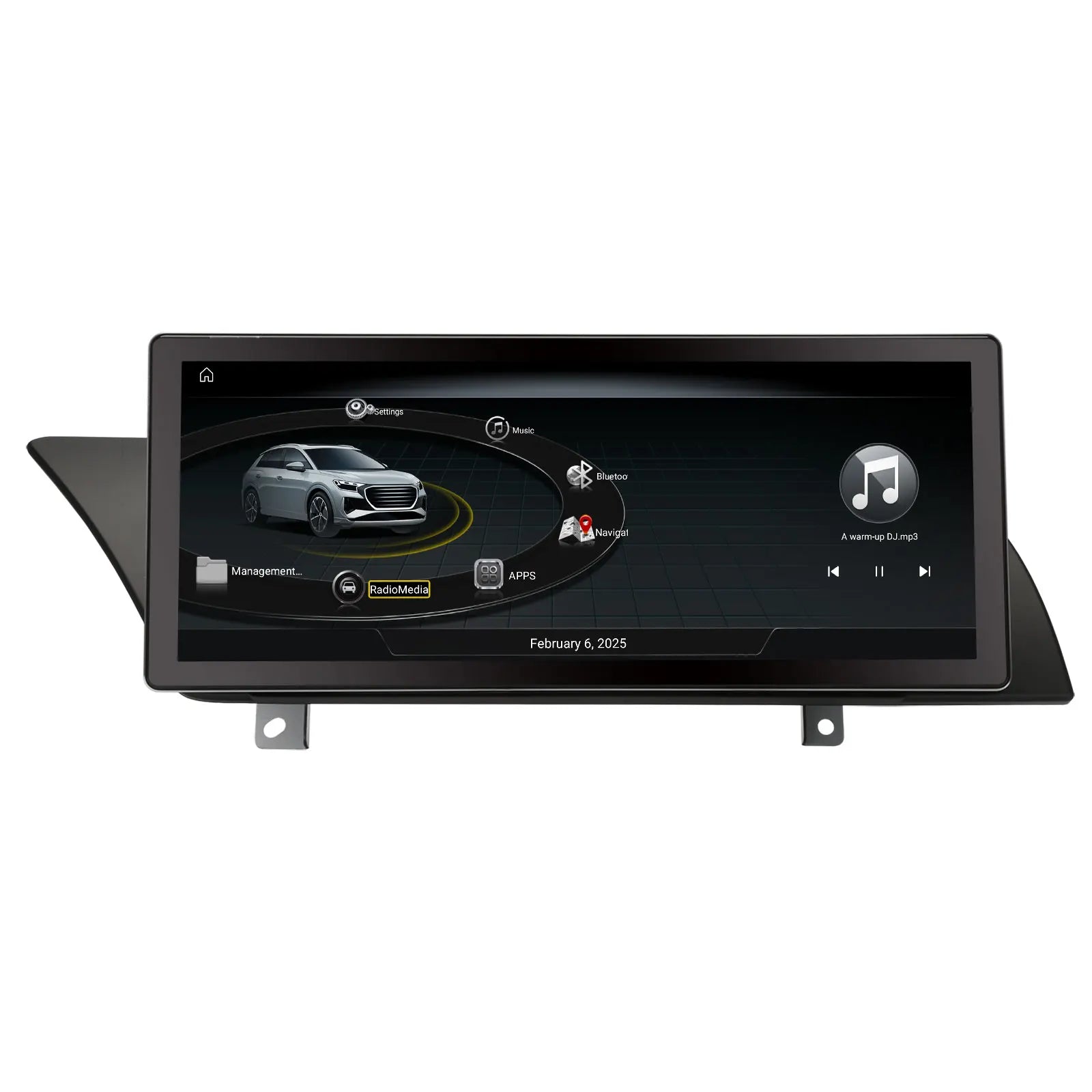

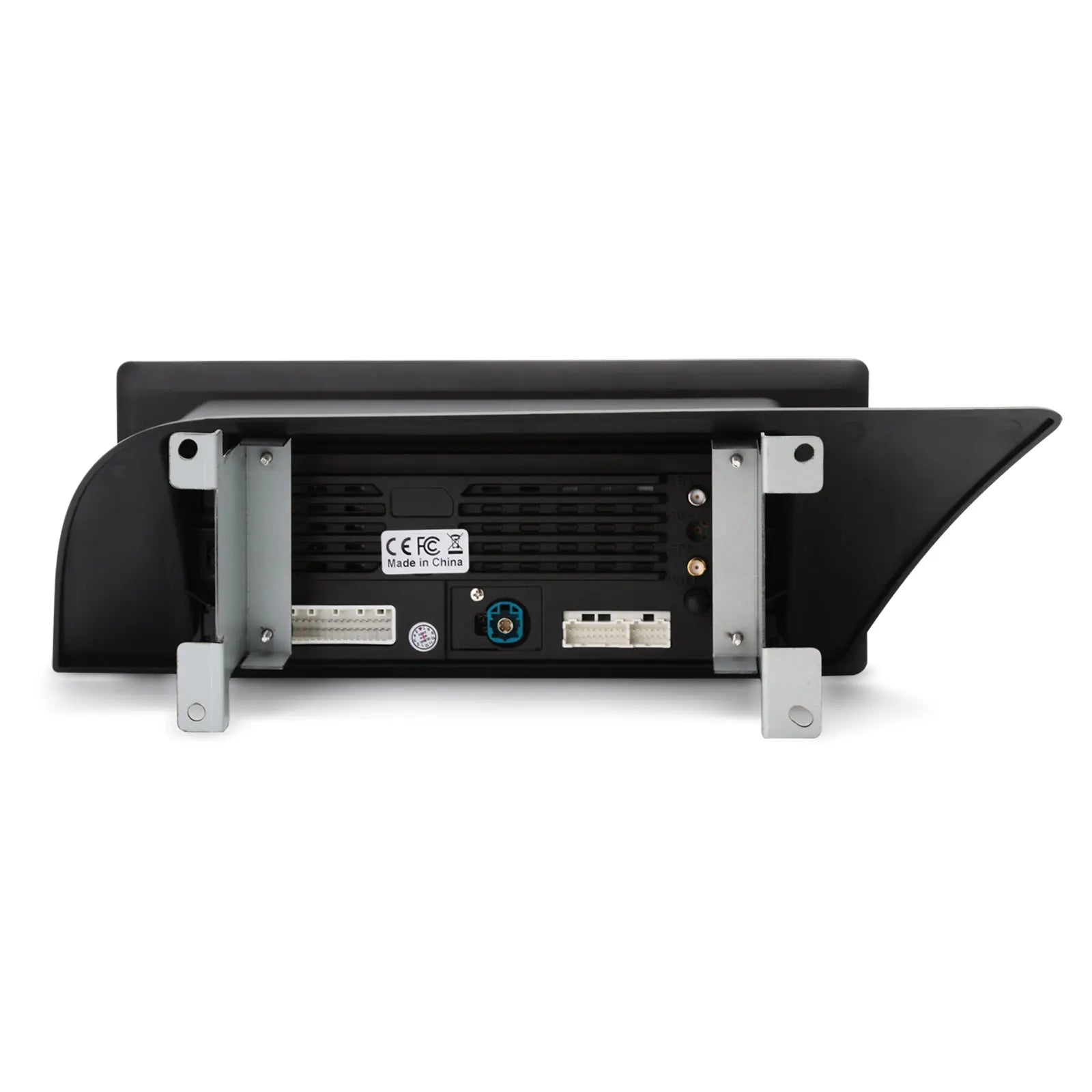

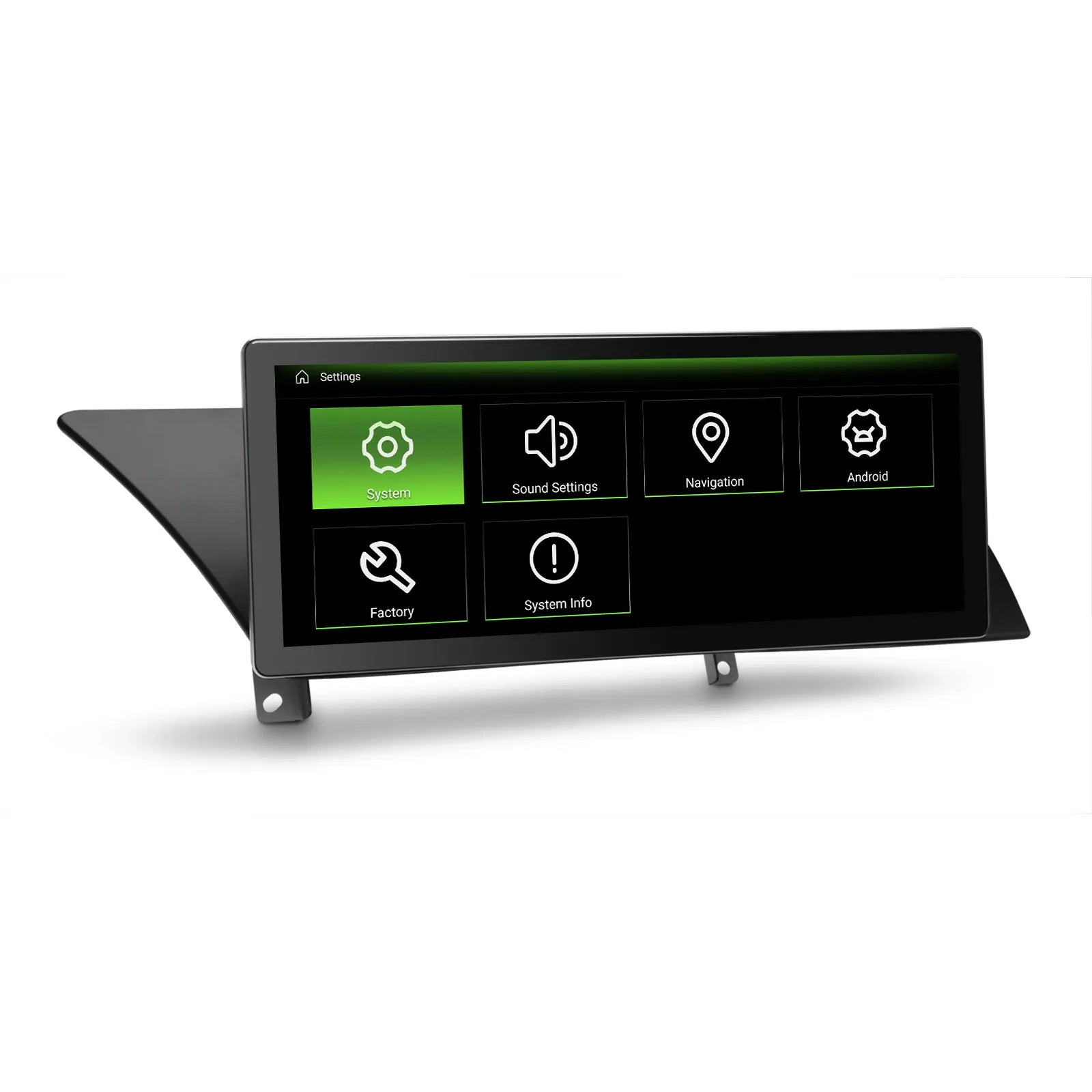

ES3974HL 10.25" IPS Octa-Core Android 14.0 Car Multimedia Player Screen Upgrade GPS WiFi 4G BT CarPlay Auto...

  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A

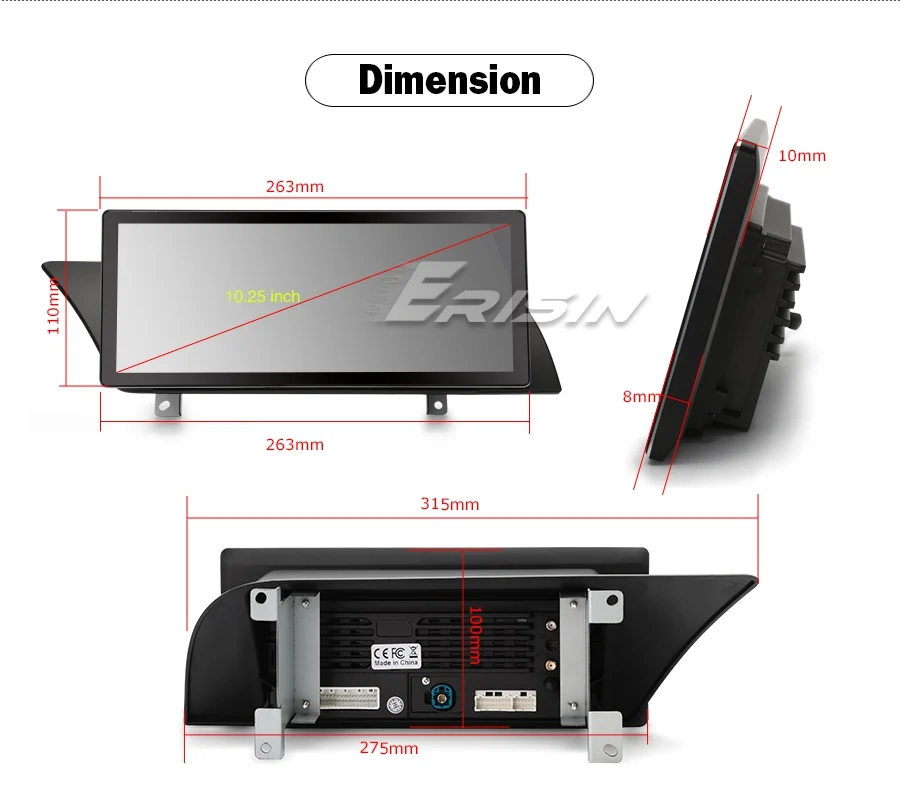

- Screen Size: 10.25 inch
- Package Size: 465mm*255mm*205mm
- Shipping Weight: 5kg

  System
- Operation System: Google Android 14.0
- Chips: Qualcomm Snapdragon 668S, 11nm Technology
- CPU: Octa-Core 4* Kryo 240Gold 1.6GHz + 4* Kryo 240Silver 1.8GHz 64-bit
- GPU: Adreno 610
- RAM: 4GB
- Internal Memory: 64GB
- Extended USB: Support external USB up to 256GB

  Display
- Screen Type: Multi-touch IPS screen
- Multi-windows view: Yes, Support Split Screen, you can run two apps side by side; Support Picture-in-Picture Mode
- Resolution: 1920*720
- Capacitive or Resistance Screen: Capacitive
- Built-in Date & Time: Yes, show real time and can use network-provided time
- Change Apps-Icon Position: Yes
- Display Original Car Information: Yes

  WiFi/4G
- WiFi Internet: Dual Band WiFi, support 2.4GHz and 5.0GHz Dual Band WiFi networking, support WiFi Hotspot.
- 4G: Built-in 4G Module, support 4G SIM card.
- Supported 4G Frequency: LTE-FDD, LTE-TDD, WCDMA, TD-SCDMA, EVDO, CDMA, GSM etc.
  4G FDD-LTE Band: B1/B3/B5/B7/B8/B20/B28 (B28A/28B)
  4G TDD-LTE Band: B38/B39/B40/B41

  Internet
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from play store
- Online Music: Yes, use apps like Spotify, Amazon Music, Google Music, Apple Music, Deezer downloaded from PlayStore.
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
  DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
  MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot

  GPS
- Operation System: Android
- Support Maps: IGO, Sygic, Waze maps for Android
- Support offline navigation: Yes, ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as Google Maps

  Bluetooth 5.1
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search for contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the left side of this unit
- External Microphone Jack: Yes, on the back

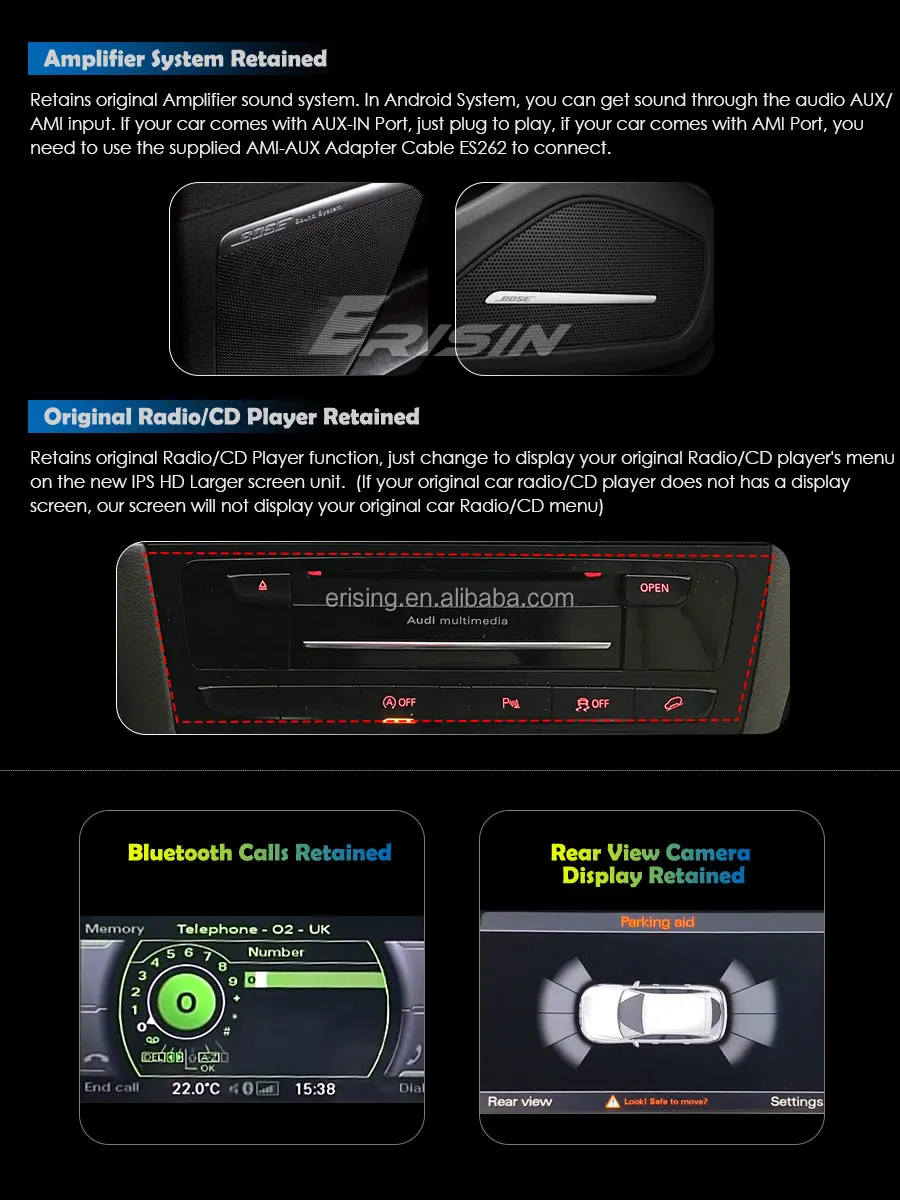

  OEM Radio-IN & CD-IN

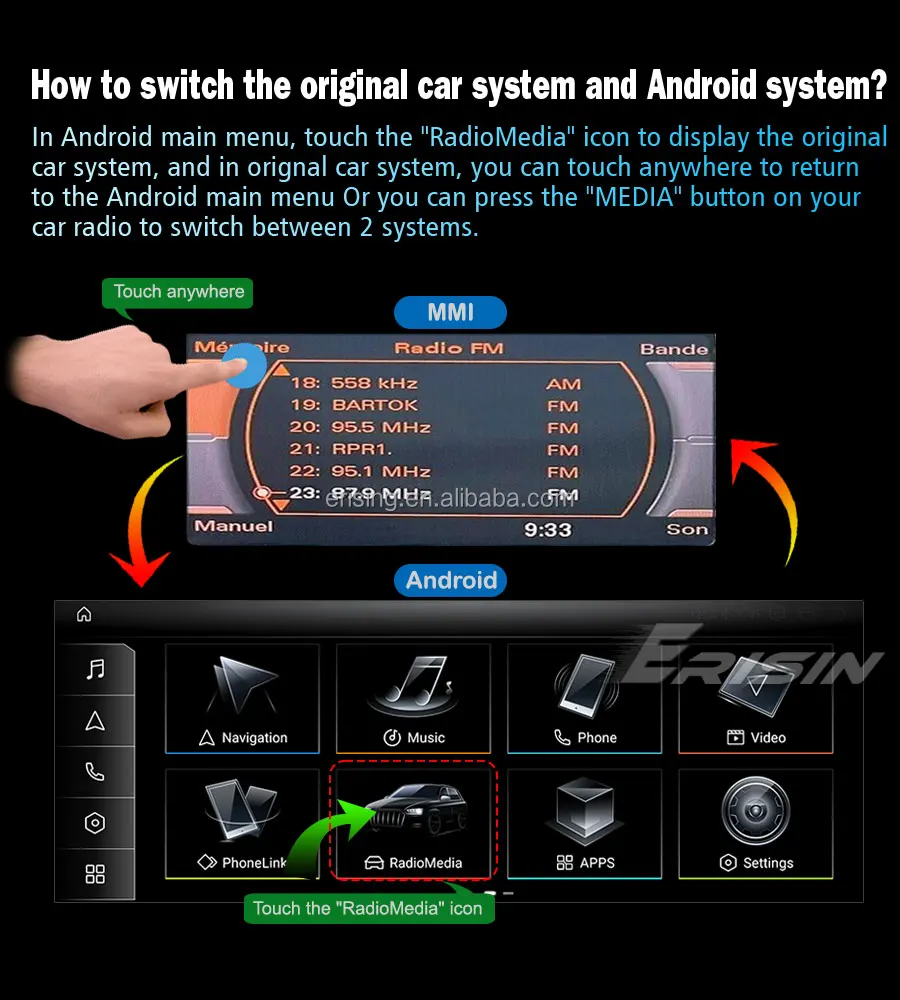

- Support OEM Radio & CD Input: Yes, will display the OEM CD/Radio menu on this unit's Screen
- Keep all the OEM CD functions: Yes
- Keep all the OEM Radio functions: Yes
- Destroy the original cables: No, just plug and play
- Support Original Car Information Display: Speed, Engine Speed, Central Door Locking, Door Alarm Information, Safety Belt Warning, etc.

  USB
- Position: 2 USB ports on the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB-Receiver, Smartphone etc.
- Capacity: 256GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

  CarPlay
- Built-in CarPlay: Yes, just connect your smartphone to this unit with USB or Bluetooth to use this function
- Connection: Wired or Wireless
- Support Device: iPhone iOS 7.1 and above
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control

  Android Auto
- Built-in Android Auto: Yes, just connect your smartphone to this unit with USB or Bluetooth to use this function
- Connection: Wired or Wireless
- Support Device: Android Smartphone with Android 5.0 and above
- Control the connected Android Phone on head unit: Yes

  DVR-IN
- Built-in DVR App: Yes, just connect a USB DVR Camera to use this function
- Connection Port: USB
- Power Supply to DVR-Camera directly: Yes
- Touch Control DVR-Camera on unit: Yes
- DVR-Camera incl.: No, you can contact us to buy it together

  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together

  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB-Receiver to use this function
- Connection Port: USB
- Power Supply to DAB-Receiver directly: Yes
- Touch Control DAB-Receiver on unit: Yes
- DAB-Receiver incl.: No, you can contact us to buy it together

  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening to music
- Photo Viewer: Support JPEG, BMP, PNG, GIF format, played by Revolve or Powerpoint, support 4096*4096 Pixels
- APK Installer: Support Android Package installer
- Built-in CAN-Bus Decoder, compatible with most of the steering wheel control functions and original car MMI knob
- Support Picture-in-Picture Mode. Customise your driving interface with our PiP settings.
- Built-in 2 Theme UI-Style, our unique design, you can choose your favorite style.
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB

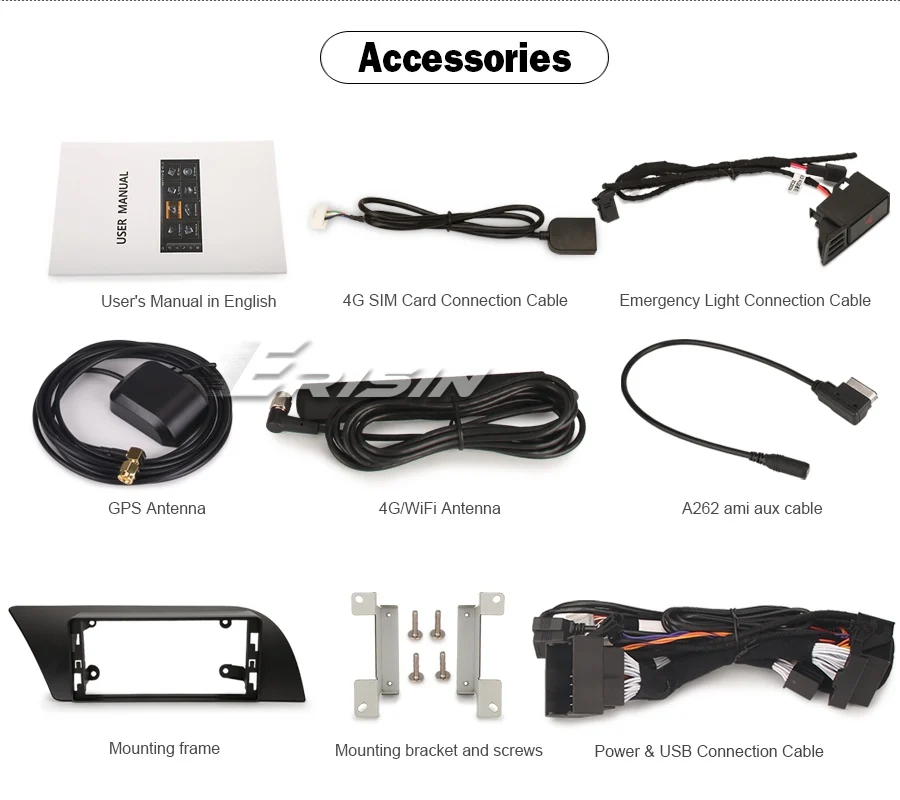

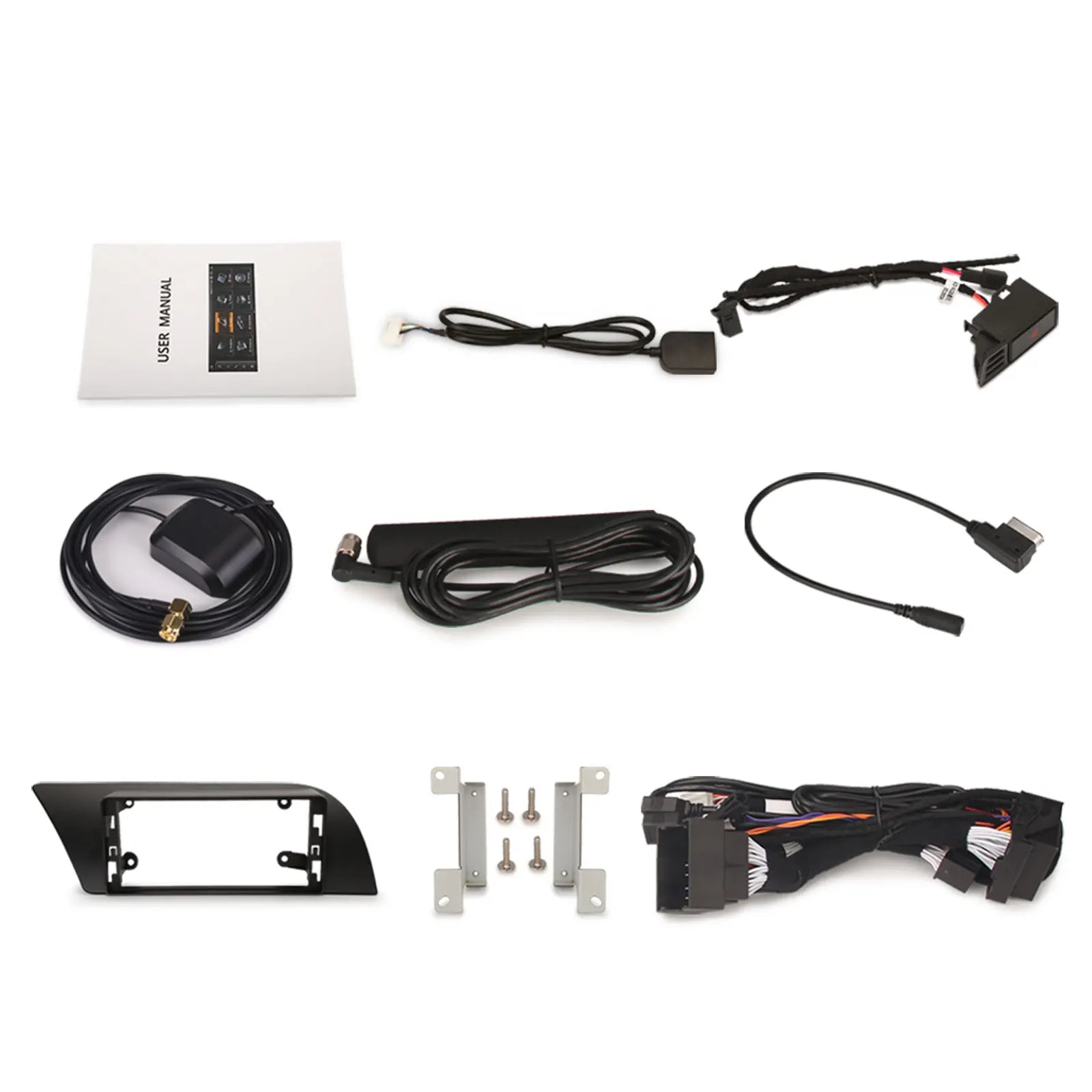

  Accessories
- 1*User's Manual in English
- 1*Power & USB Connection Cable
- 1*4G SIM Card Connection Cable
- 1*GPS Antenna
- 1*4G/WiFi Antenna
- 1*Emergency Light Connection Cable

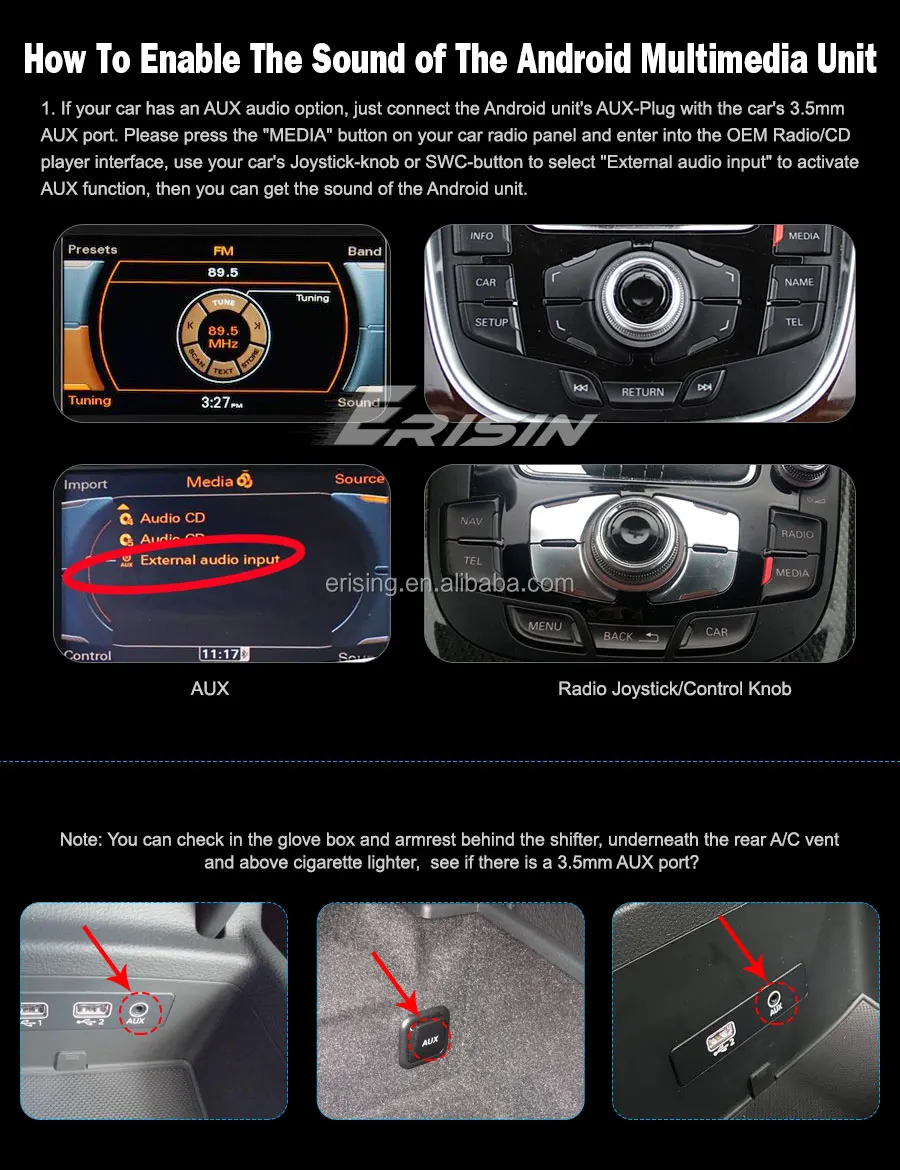

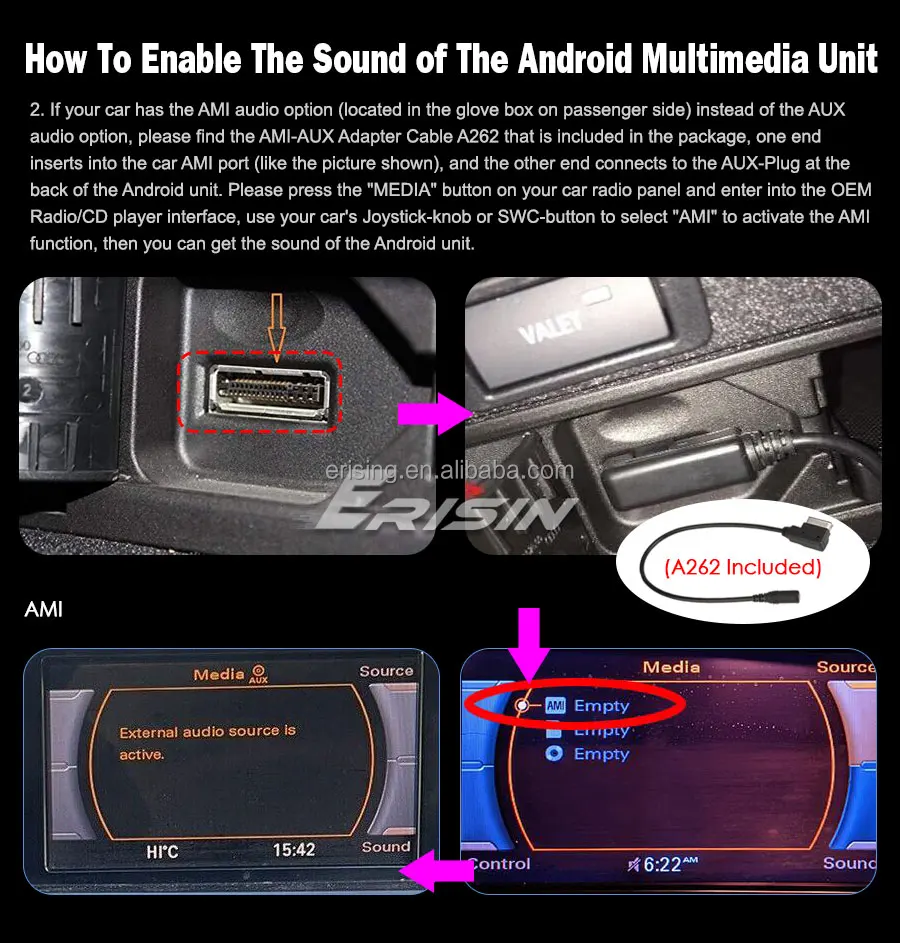

- 1*A262 Ami Aux Cable

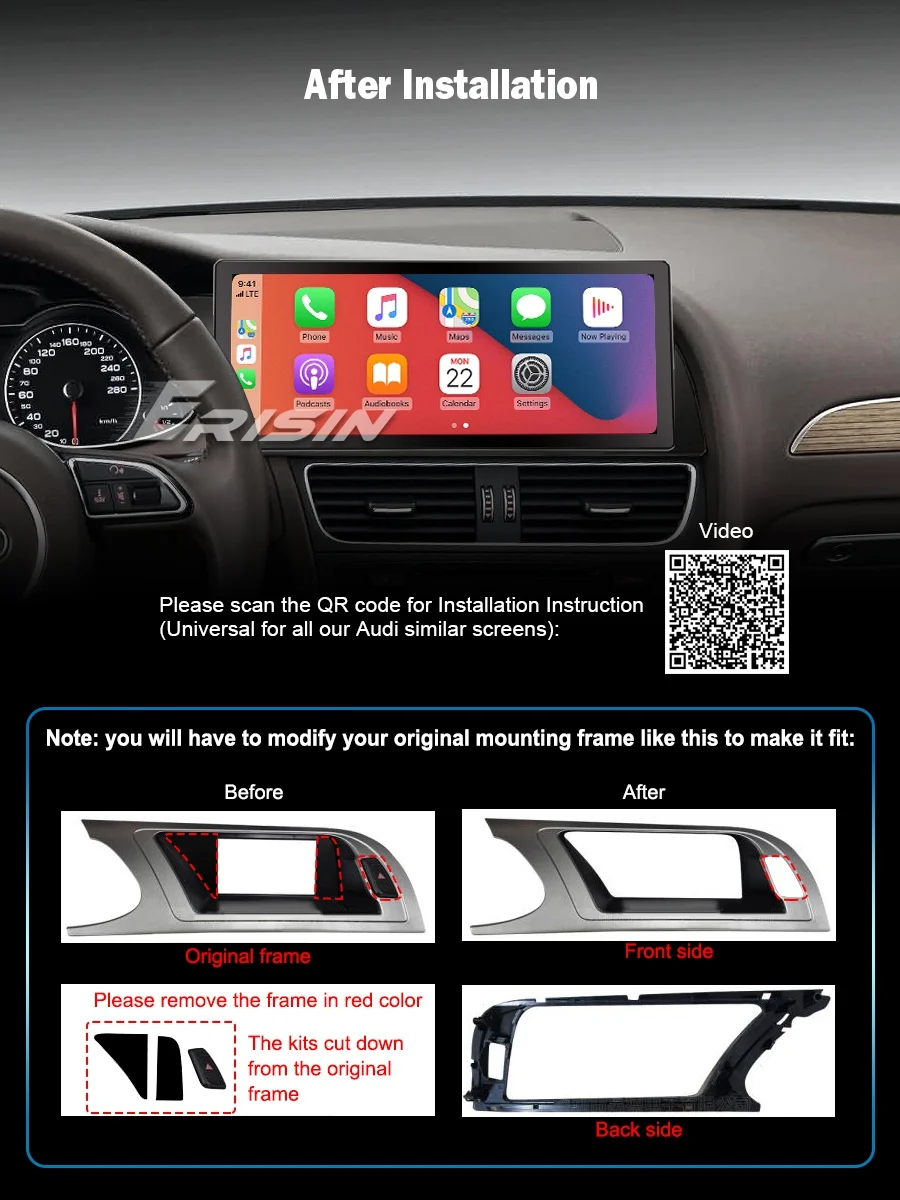

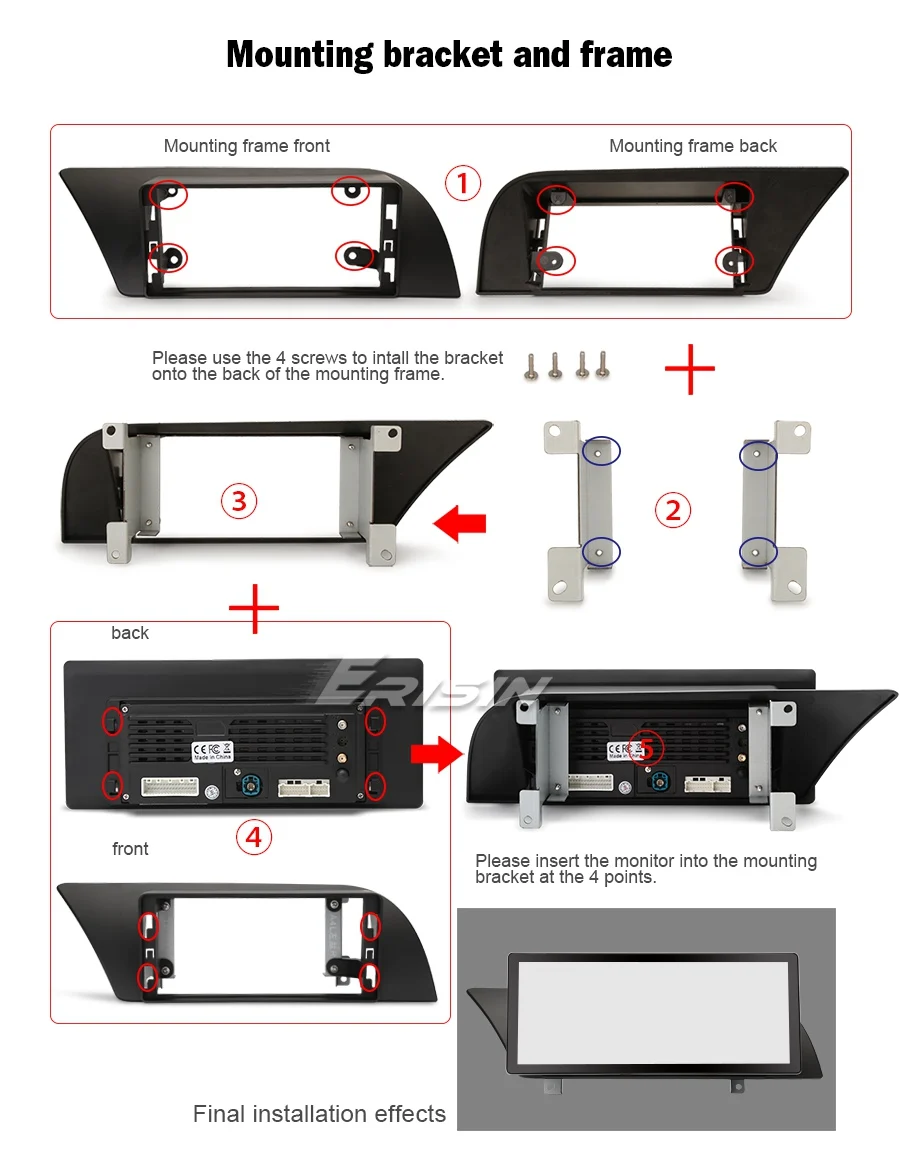

- 1*Mounting Bracket and Screws
- 1*Mounting Frame
