SPECIFICATIONS

Brand Name: Tanghu

Fiber interface: FC interface

Fiber type: Single mode single fiber

Humidity: 0 ~ 95% (no condensation)

Model Number: VCWD4-2

Place of Origin: Shanghai, China

Power supply: External power adapter

Temperature: -30 ° C ~ 75 ° C

Transmission distance: Single mode fiber transmission 20 km

Transmission wavelength: 1310nm

Type: Fiber Optic Transceivers

Use: FTTH

Video bandwidth: 8MHz

Video interface: BNC

Warranty Time: 1 Year

Working voltage: AC90-260V

Related Products

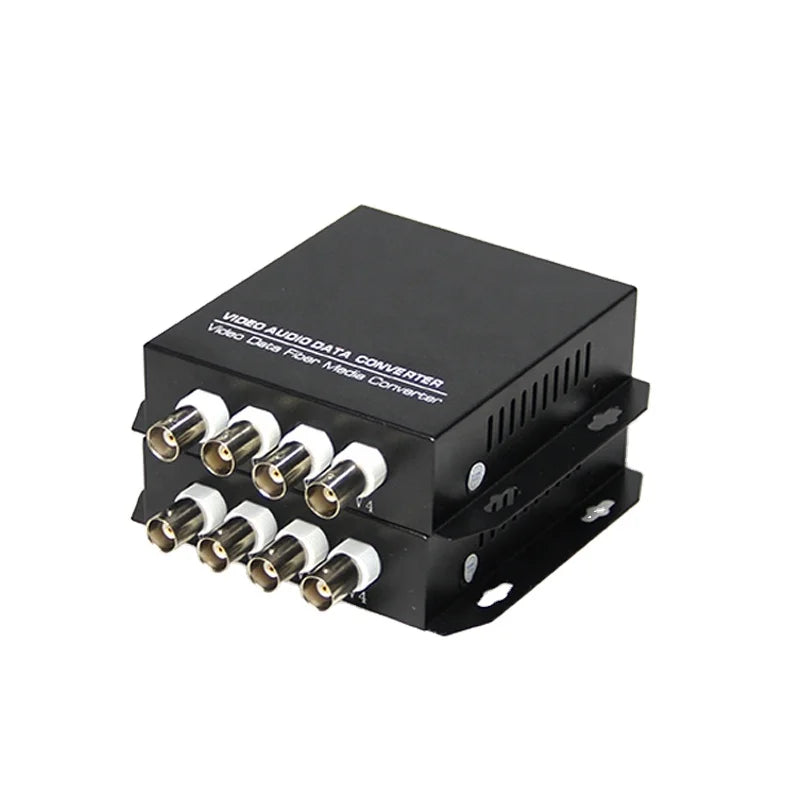

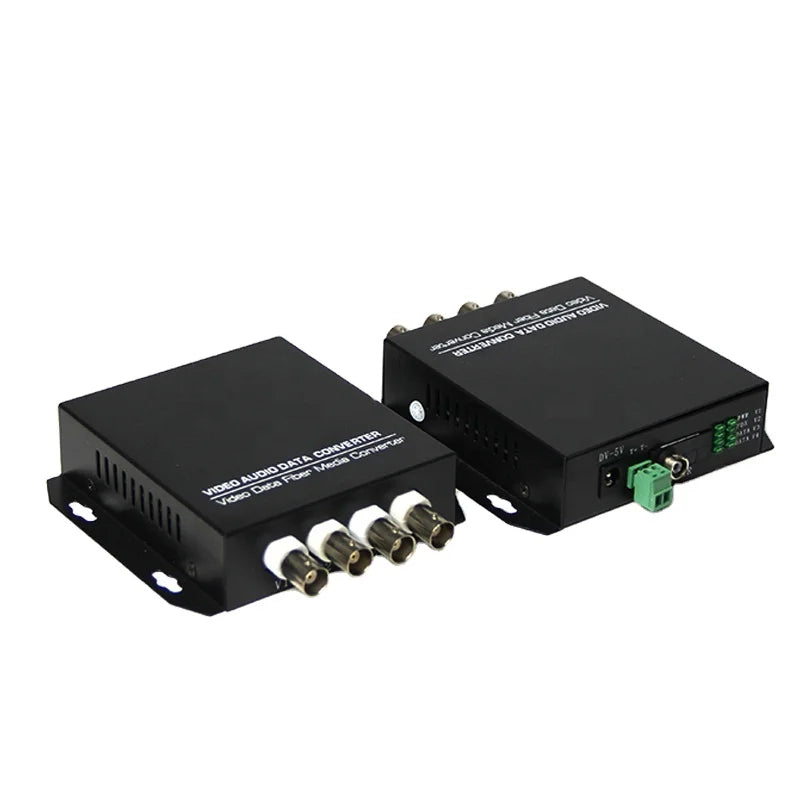

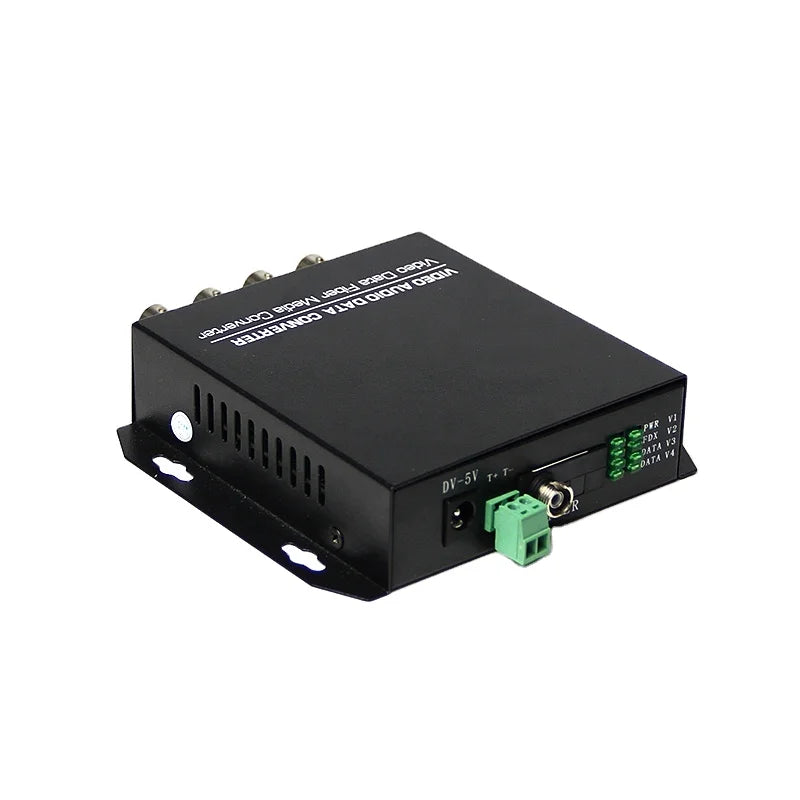

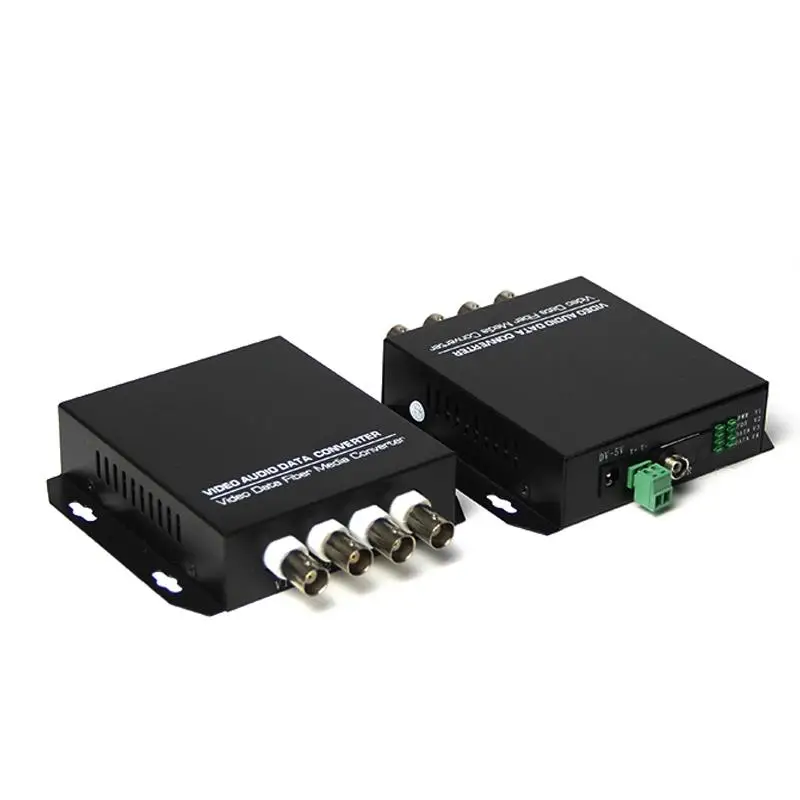

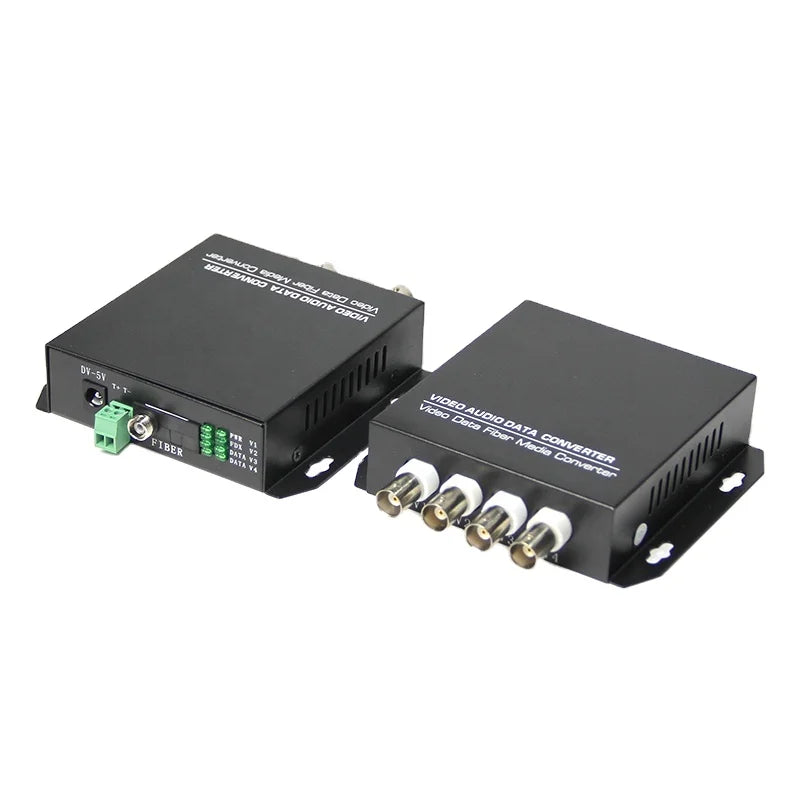

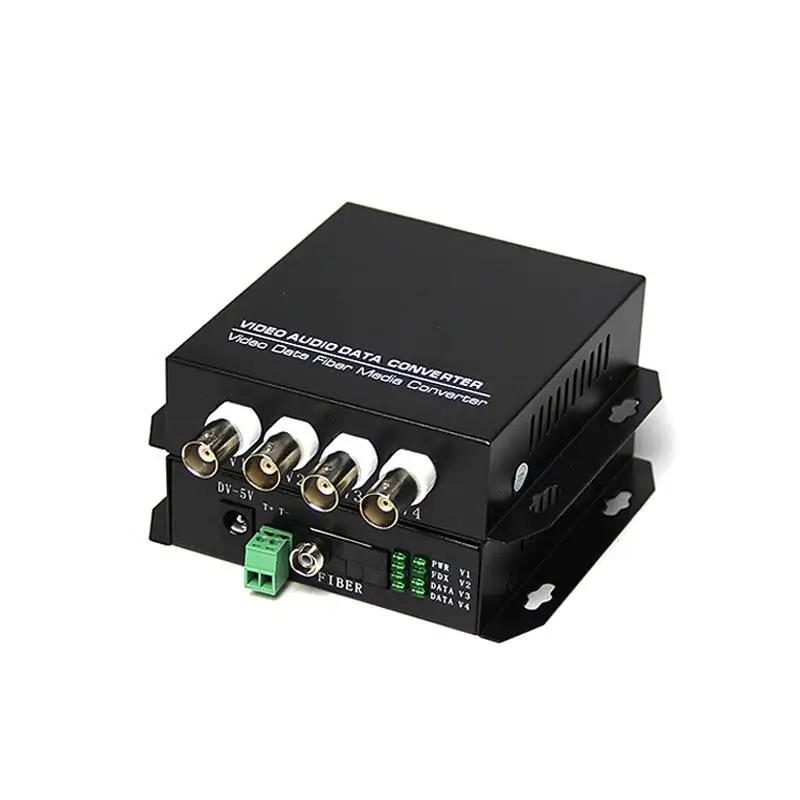

Product Description

For the environment:
1. Security Systems
2. Radio and television transmission
3. Video monitoring
4. Building control systems
5. Train/High speed road monitoring
6. Intelligent Traffic Monitoring System (ITS)
7. Remote multimedia teaching / campus monitoring
8. Long-distance radio and television transmission system

Video Index:
1. Video : 1/2/4/8/16/32 channel.
2. Video Interface: BNC.
3. Video Input / Output Impedance : 75ohm ( unbalanced ) .
4. Video Bandwidth 8MHz.
5. Video format compatible PAL, NTSC, SECAM.
6. Video voltage 1VP-P.
7. Video SNR ≥ 70dB.
8. Differential gain ≤ 0.7%.
9. Differential phase ≤ 0.7 °.
10. 8- bit linear PCM coding.
11. 15MHZ high-speed sampling .

Optical index:
1. Optical interface : FC
2. Transmission distance : single-mode fiber 0-20KM.
3. Wavelength : Single-mode 1310/1550μm (9/125μm).

Data index:
1. RS485 reverse direction (Function :control PTZ camera)
2. Terminal block connector.

Fiber type	Single mode single fiber
Fiber interface	FC interface
Transmission distance	20 km
Transmission wavelength	1310nm
Video interface	BNC
