SPECIFICATIONS

brand name: TENMARS

customized support: OEM

place of origin: China

warranty: one year

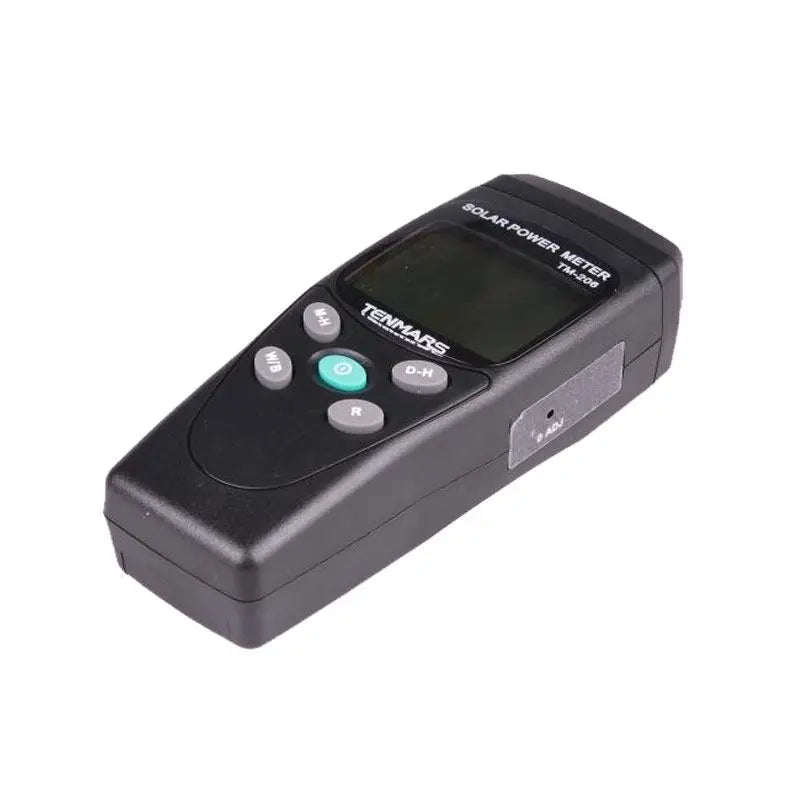

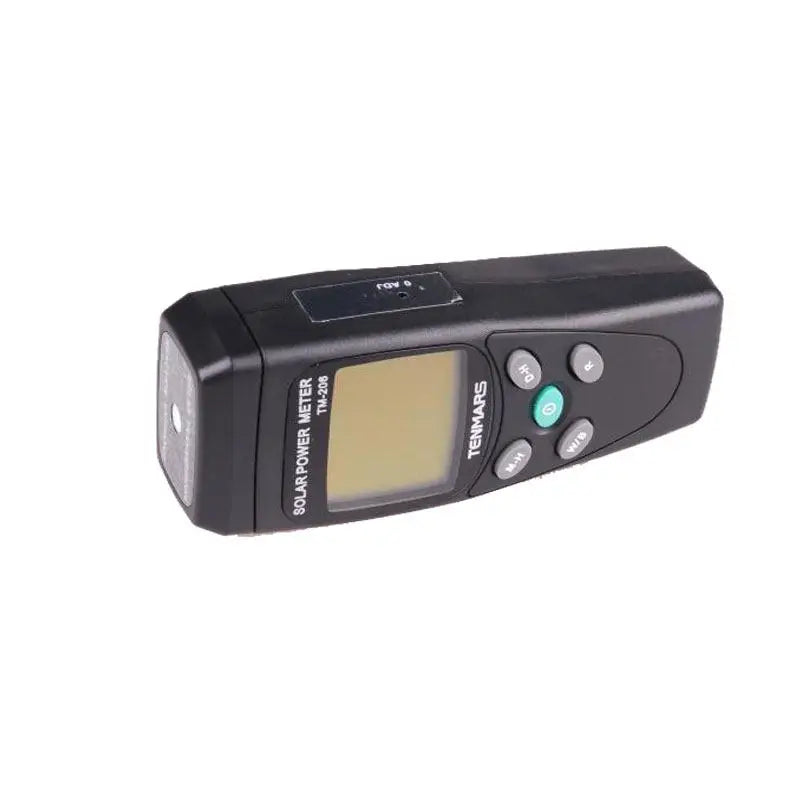

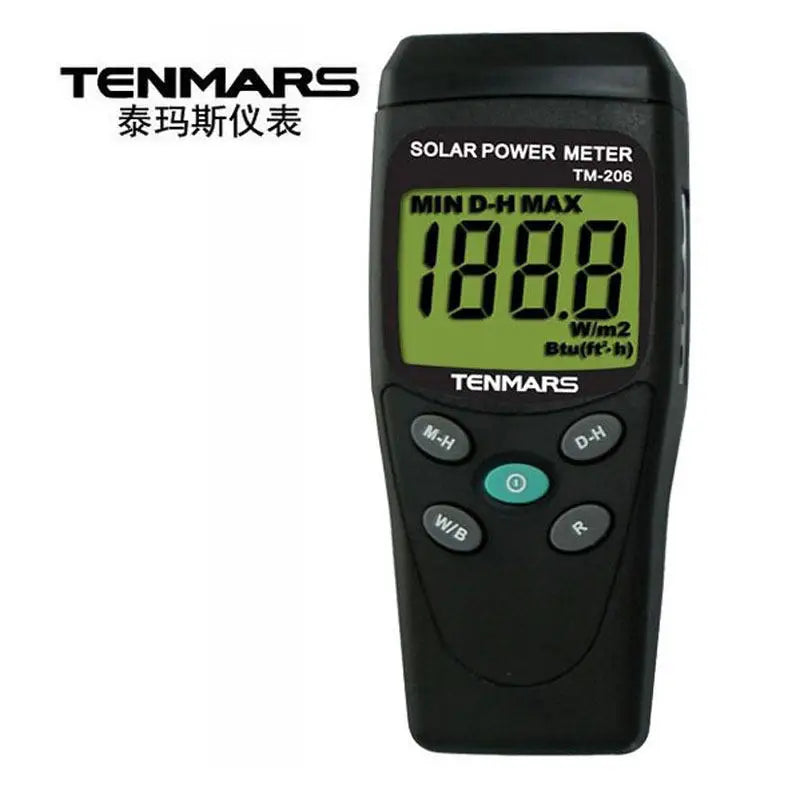

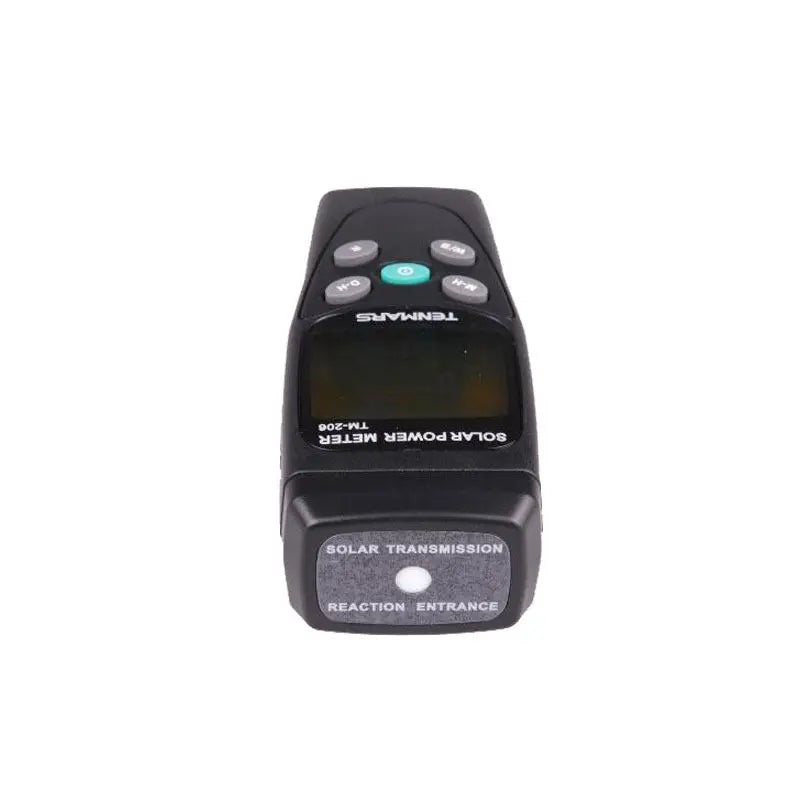

Portable TM-206 Solar Radiation Measurements Tester

Product Description:

- 3 digits LCD display with maximum reading of 2000.
- Measuring the Solar radiation emitted by the sun.
- Display units: W/m2 (Watts per square meter) or BTU.
- Data Hold/ MAX/MIN functions.

Application:

TM-206 Solar Power meter is ideal for the measurement of the solar radiation that is emitted by the sun from a nuclear fusion reaction that creates electromagnetic energy.
The spectrum of solar radiation is close to that of a black body with a temperature of about 5800 K. About half of the radiation is in the visible short-wave part of the electromagnetic spectrum. The other half is mostly in the near-infrared part, with some in the ultraviolet part of the spectrum.

The units of measure are Watts per square meter or BTU, the typical test and measuring applications are:

- Meteorology applications

- Agriculture applications

- Physics and optical laboratories

- Solar radiation measurement.
- Solar transmission measurement
- Solar power research
- Identify high performance windows
- Helpful to set up Solar PV Panels at optimum angles of incidence
- Light Intensity Measurement for the car windows

Specification:

- Size:130x 55x 39mm(LxWxH).

- Weight: About 150g.
