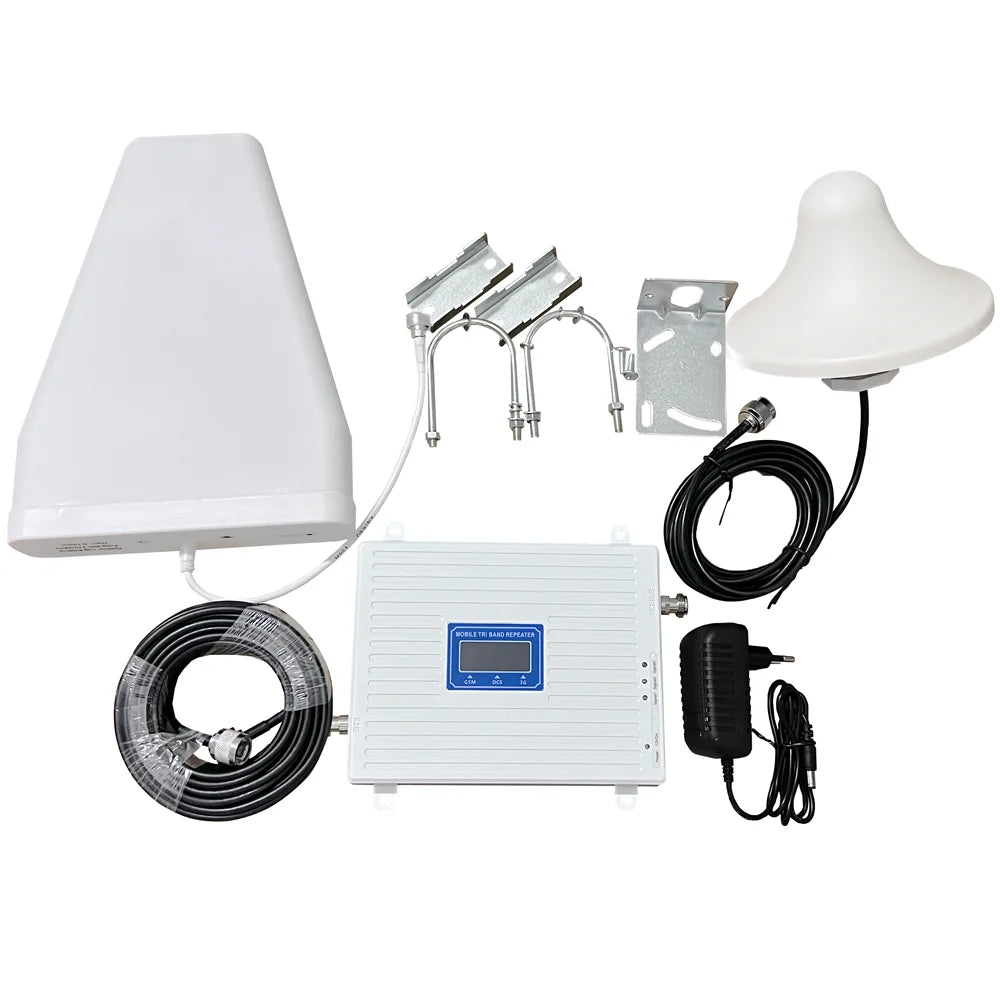

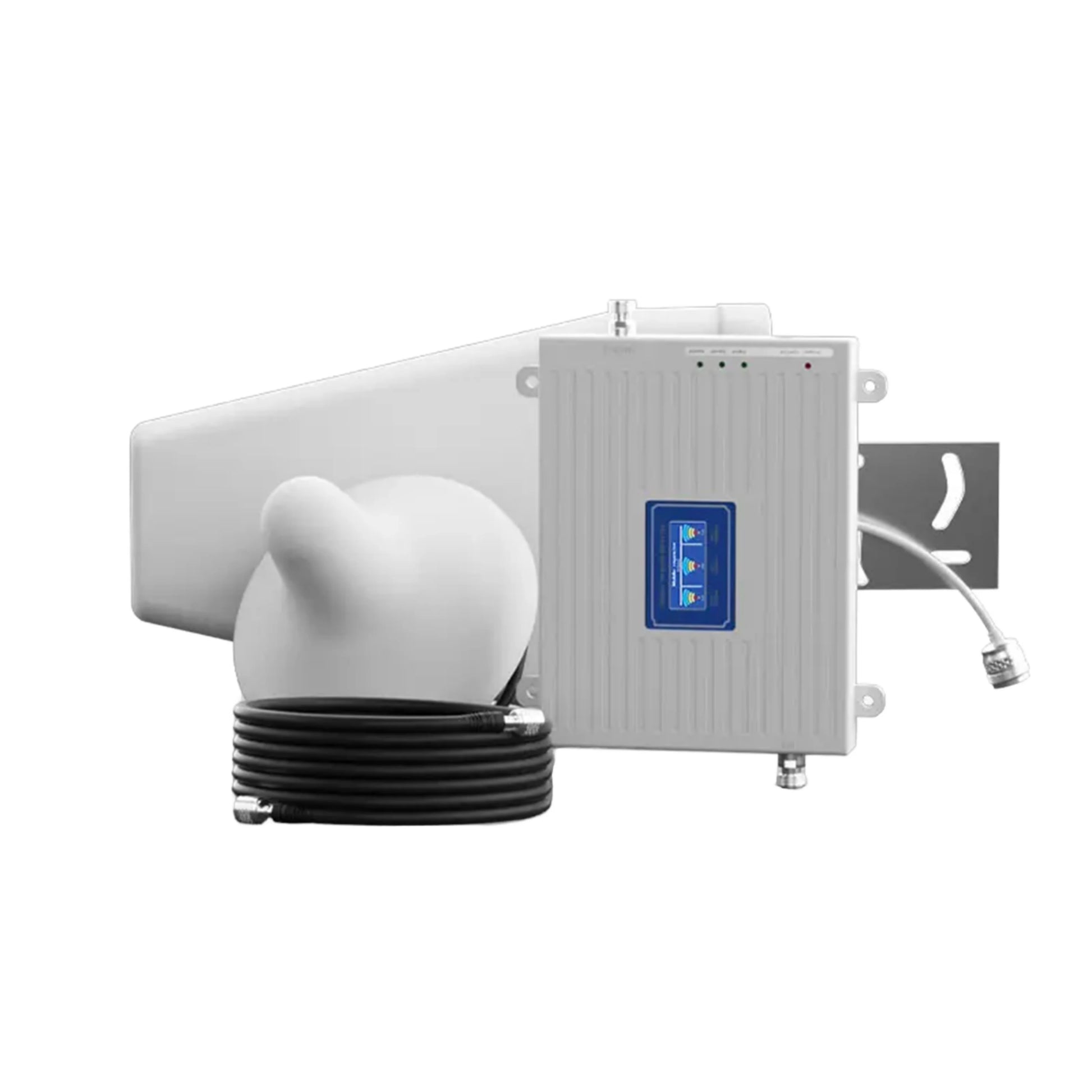

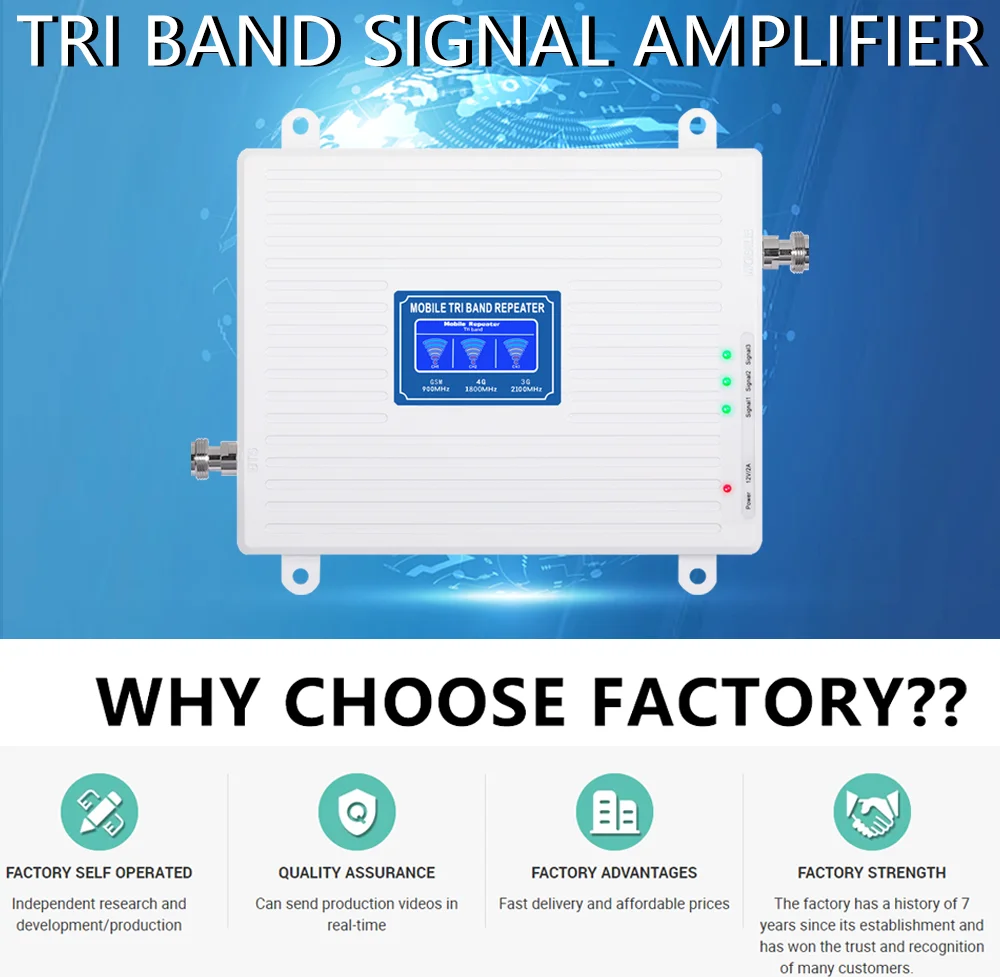

2 3 4G 900 1800 2100Mhz Tri Band Factory Most Affordable Mobile Phone Signal Amplifier / Booster / Signal Network Repeater

2 3 4G 900 1800 2100Mhz Tri Band Factory Most Affordable Mobile Phone Signal Amplifier / Booster / Signal Network Repeater

$36.00 USD
$36.00 USD $36.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SPECIFICATIONS

Antennas: NO

Brand Name: signalsmith

Color: White+Black

Coverage: 300-500sqm,500sqm

Frequency: 900/1800/2100Mlz

Gain: 70.0db,65~ 70dBm

Max Output Power: 20dBm

Model Number: SS91-GDW

Network: 4 G,Gsm,3 G,FDD

Place of Origin: Guangdong, China

Power Supply: DC12V/2A

Product name: Cell Phone Signal Amplifier

Standing Wave: ≤1.5dB

Transmission Rate: NO

Type: signal booster

Warranty: 1 Year

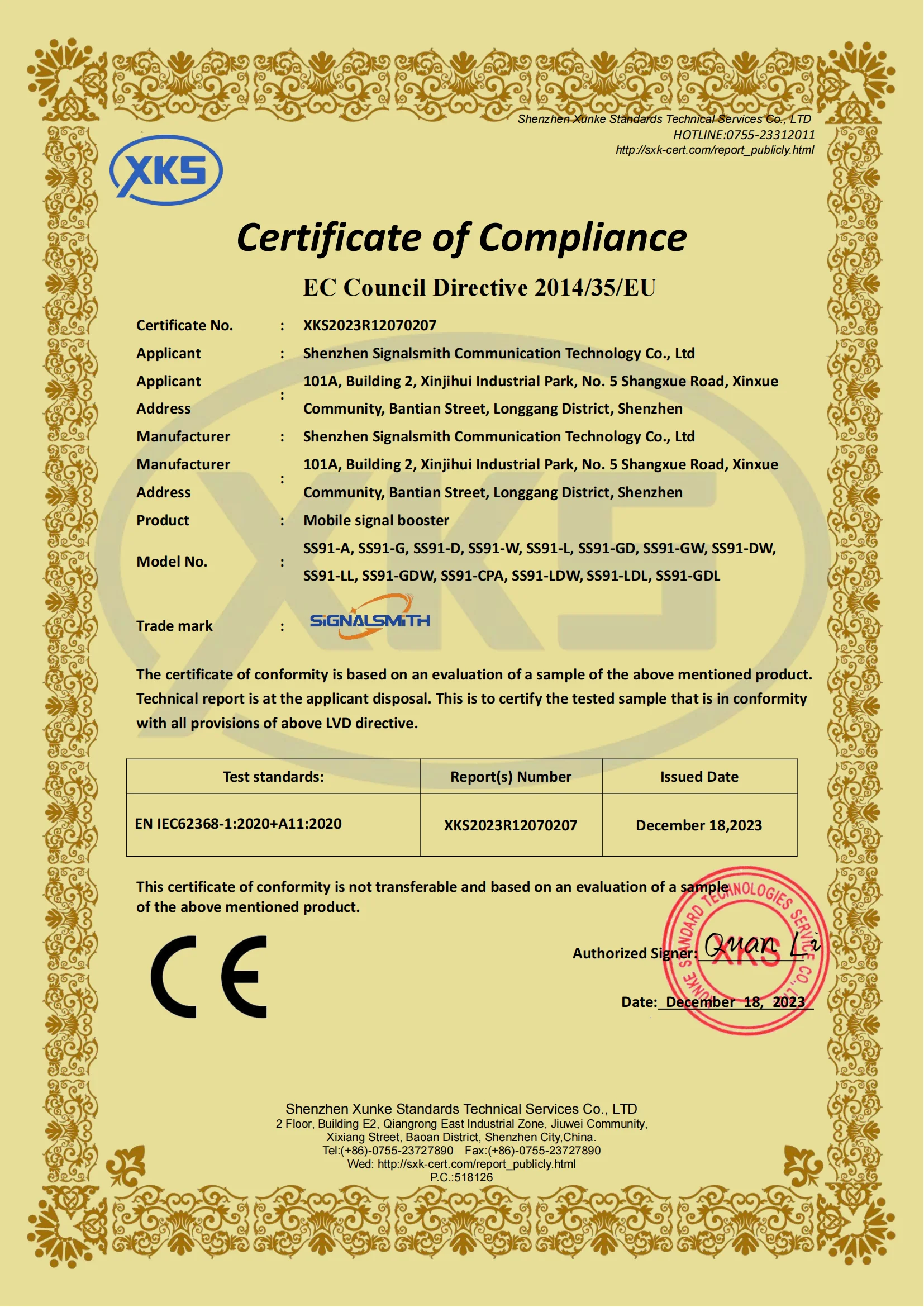

authentication: CE+ROHS

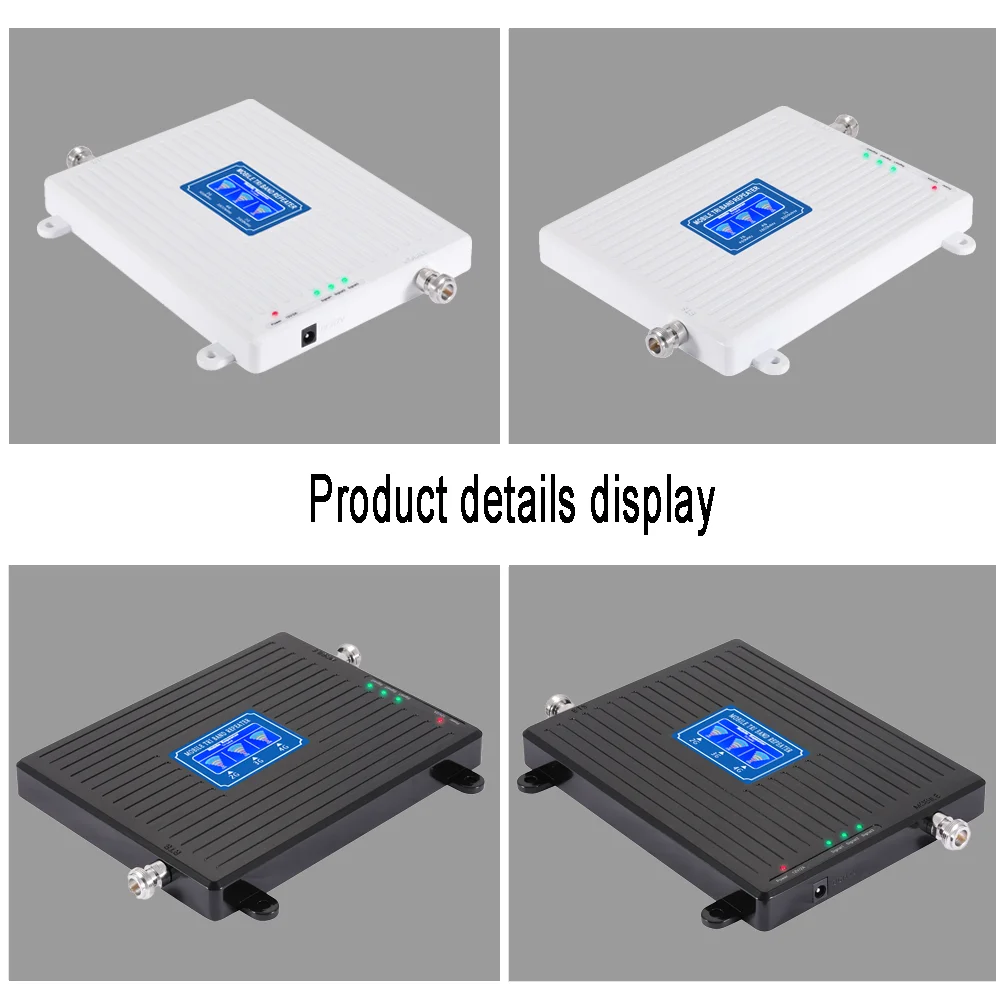

Products Description
Product Paramenters
Technique Specification
Model No
SS91-CDW
Parameter data
Uplink
Downlink


Frequency Range
CDMA
824~849 MHz
869~894 MHz
DCS
1710~1785 MHz
1805~1880 MHz
WCDMA
1920~1980 MHz
2110~2170 MHz
Output Power
18 ±2dBm
20 ±2dBm
Gain
65 dB
70 dB
Ripple in Band
≤3dB
Intermodulation Products
9KHz~1GHz
≤ -36 dBm
1GHz~12.75GHz
≤ -30 dBm

Spurious Emission
9KHz~1GHz
≤ -36 dBm
1GHz~12.75GHz
≤ -30 dBm
Noise Figure
≤ 6 dB
VSWR
≤2
Power Supply
AC:100~240V, 50/ 60Hz;DC:12V 2A
Power Comsumption
< 24W
Impedance
50 ohm
Mechanical Specification
RF Connector
N-Female
Dimensions (D x W xH )
235*182*21(mm)
Weight
≤ 1.2Kg
Operating Temperature
-10℃ ~ 55℃

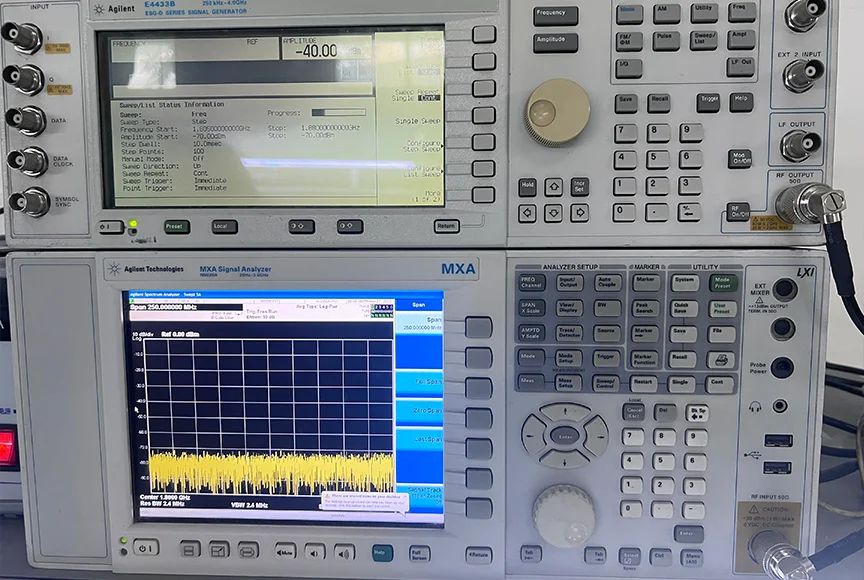

Product Quality Inspection

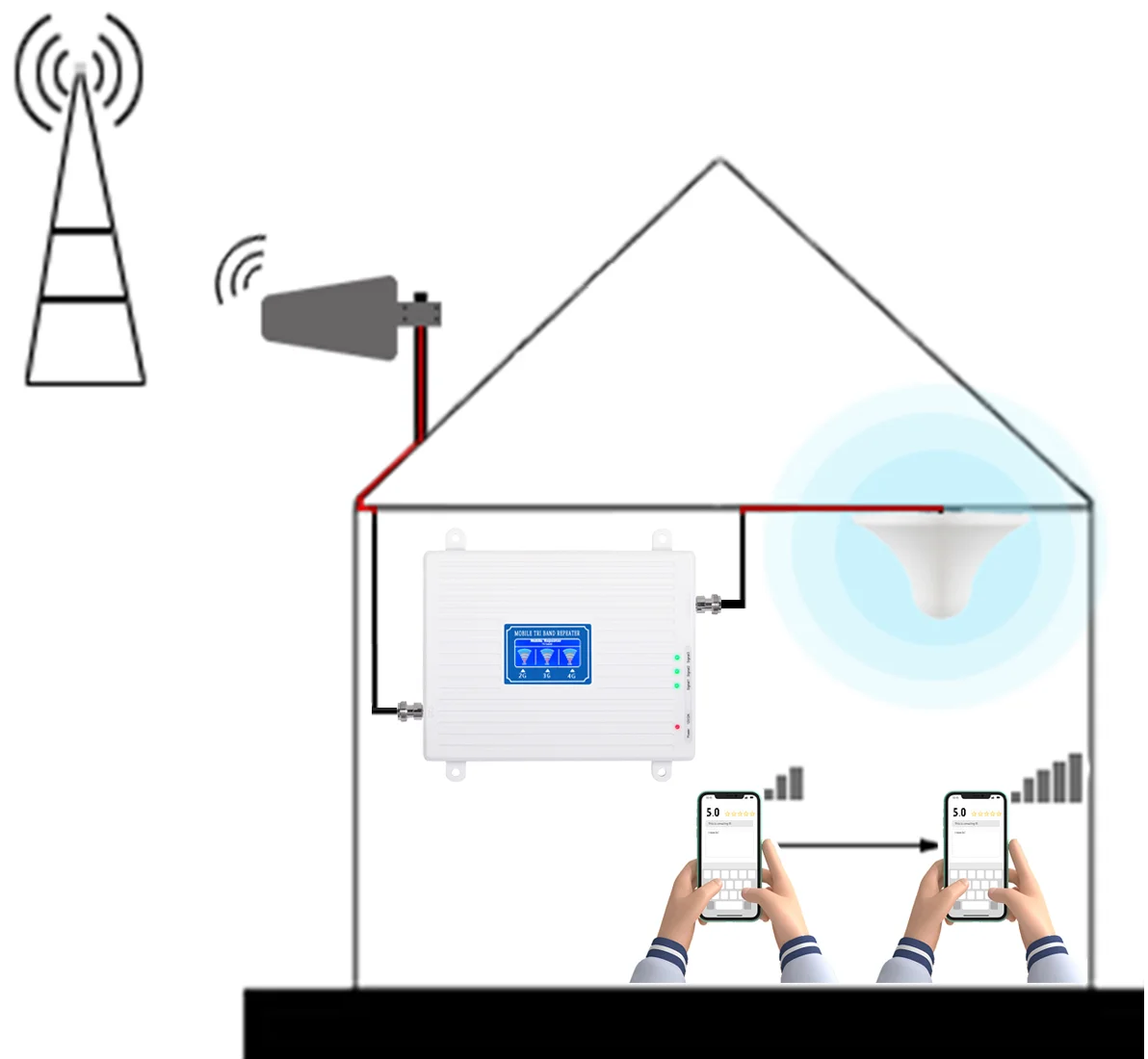

Product Introduction of mobile phone signal amplifier： The product can be used in mountain areas, urban areas, towns, villages in the city, undergroundwarehouse, basement, underground parking lot without signal area.The function is to draw (absorb)he stable signals outside to the room and then amplify and diffuse the signals to cover the wholeeffective area, so as to provide stable and high-quality signals to the equipment in need of signals

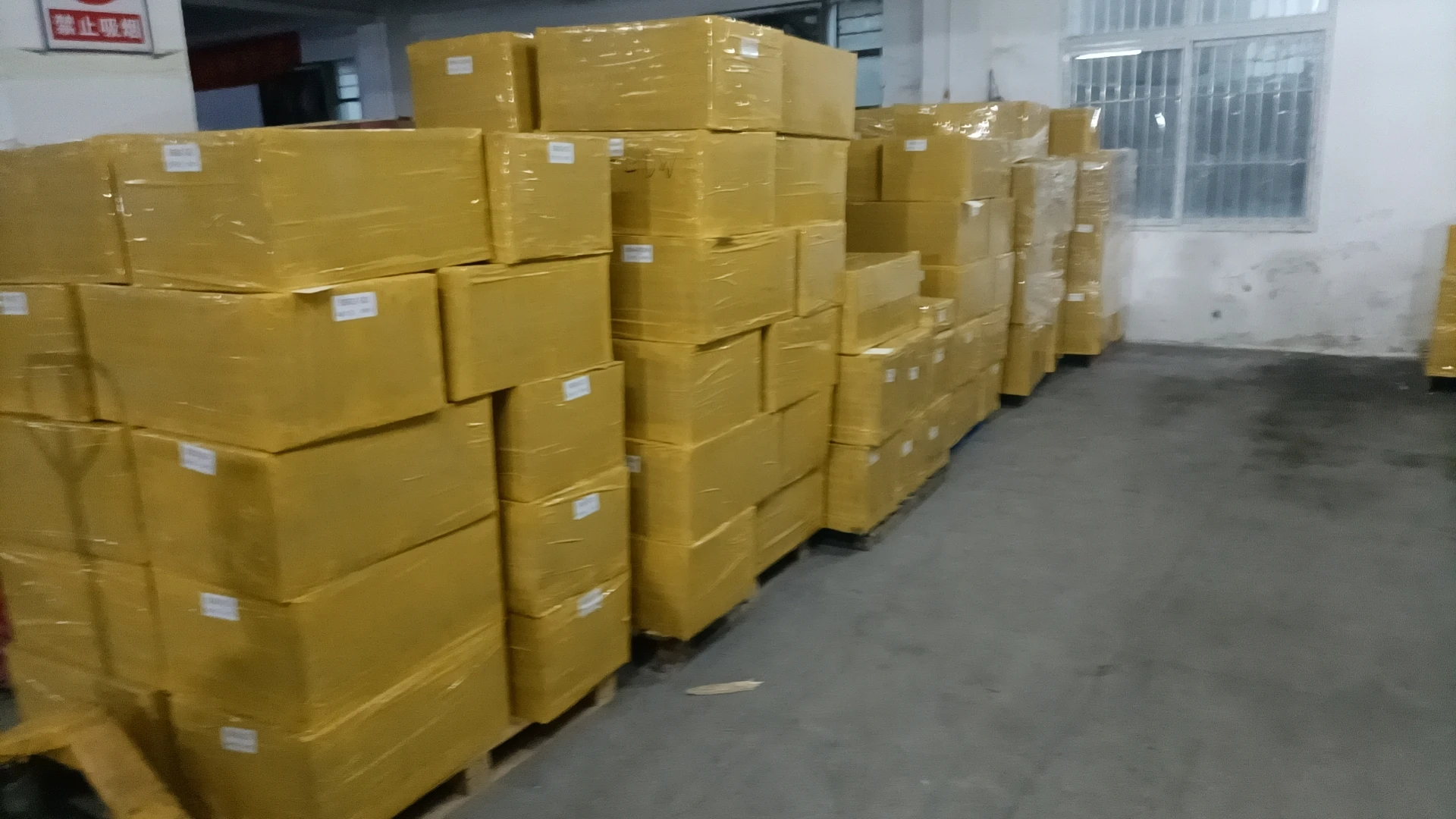

packing
Packaging Details：Put the host, power adapter and manual into a neutral packaging box, and then put 20 packaged hosts into a large box, one box is 22kg, and the size is 640 * 450 * 310mm

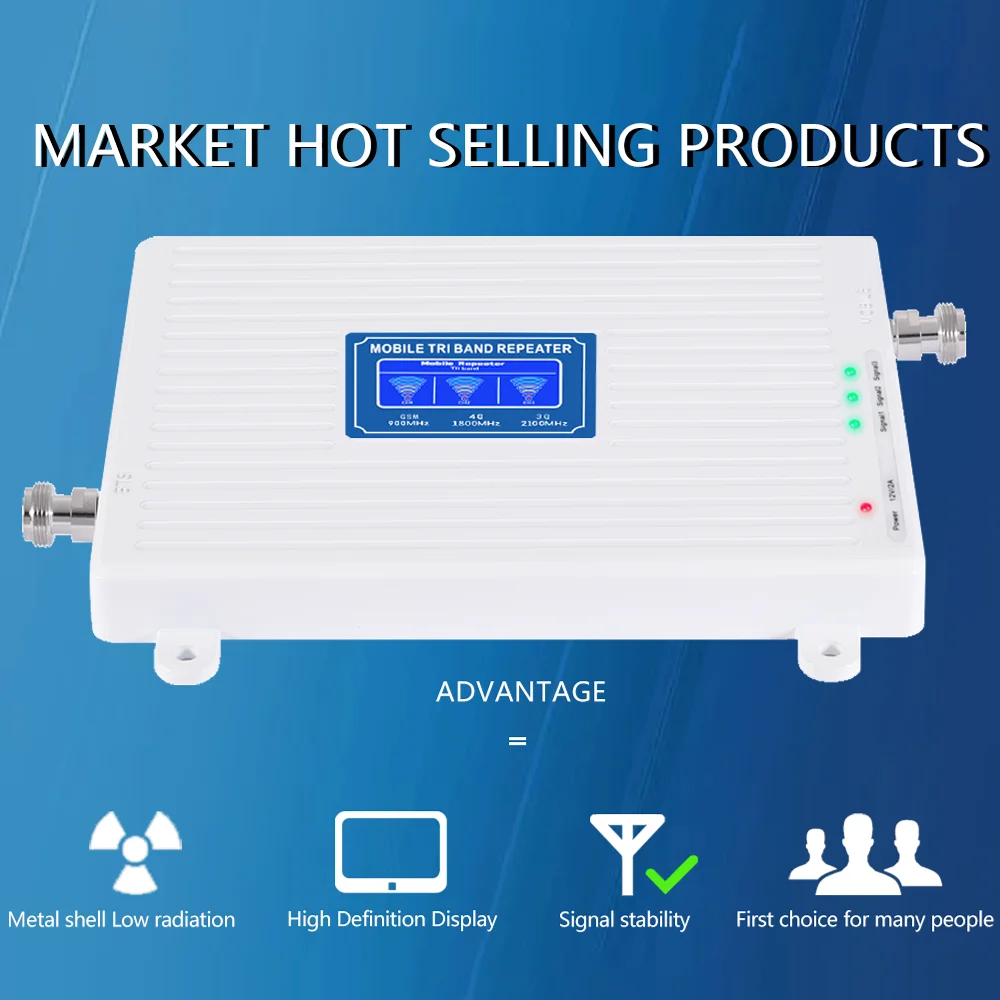

hot-sale product

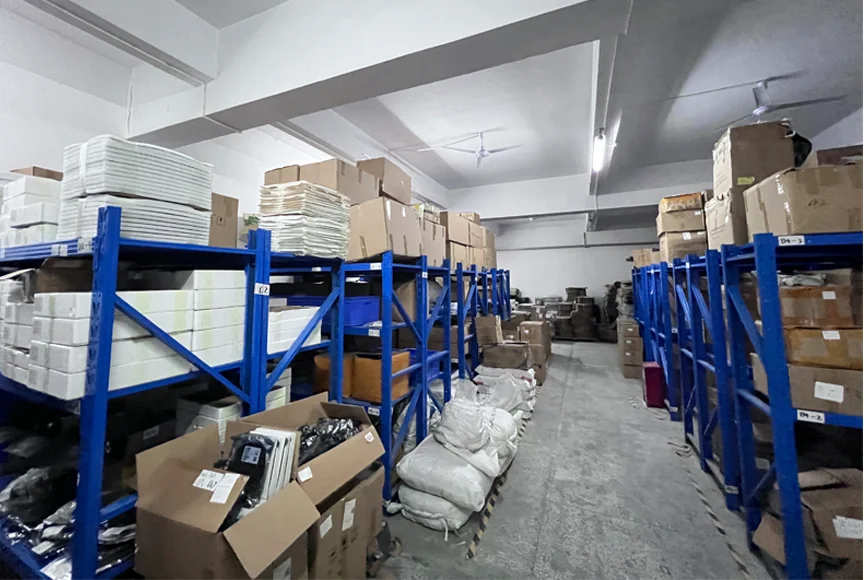

Company Introduction
The company was founded in 2016 and is located in Shenzhen, China. It is committed to the research and development of mobile phone signal amplification, working hard for the national and even global signal coverage, and reducing the trouble caused by signal blind areas. The company has always adhered to the "credit and people-oriented" business Philosophy, "Science and Technology Innovation, Quality First" management belief, relying on professional technology to quickly lay a solid foundation at home and abroad, and become a well-known brand in the industry.

We are sincerely willing to cooperate with you. let’s win the future together!
contact us
Q：Are you a manufacturer？ A：Yes, we have our own factory in Shenzhen, China. We are a factory specializing in the production and sales of repeaters Q：Can you accept customization? A：Yes, we accept customized repeater appearance, frequency, logo pattern, etc...
