The Bosch JSH180 Lithium-ion 18V jig saw is compact and lightweight. Its T-shank blade change system allows the user to insert the blade just without the need for any tools, and when it’s time for a blade change, a turn of knob ejects the blade, so there is no need to touch a hot blade. This jig saw also features an always-on blower and integrated LED light for enhanced visibility in the cutting area. The sophisticated electronics package includes Electronic Motor Protection (EMP), which protects the motor against overload and ensures a long lifetime and the Electronic Cell Protection (ECP) protects the battery (sold separately) against overload, overheating and deep discharge. Bosch 18V Lithium-ion batteries feature the CoolPack design with a special heat-conductive housing and ribbing that cools them by drawing out heat out, providing battery life of up to 100% over Lithium-ion batteries without the CoolPack design.
INCLUDES
Quantity
Include
1
JSH180 18V Top-Handle Jig Saw
1
T-Shank Jig Saw Blade
1
JA1013 Anti-Splinter Insert
1
Bevel Wrench

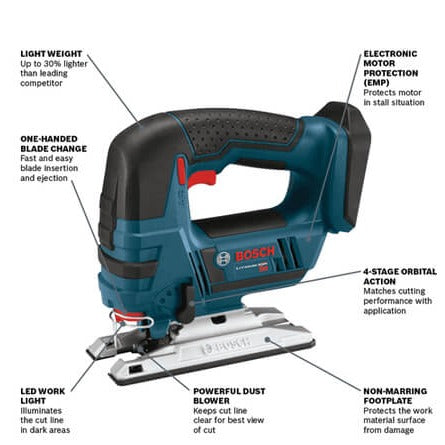

BENEFITS
Light weight - up to 30% lighter than leading competitor
Compact - up to 10% smaller than leading competitor
One-handed blade insertion and ejection for convenience and ease of use
Smallest grip diameter reduces user fatigue during extended-use applications
Always-on dust blower helps keep intended cut line visible
LED light for illuminating cut line
Adjustable footplate for bevel cuts of up to 45°
On-board bevel wrench storage for more convenience
Electronic Motor Protection (EMP) protects the motor against overload and ensures a long lifetime
Bosch 18 V Lithium-ion batteries (sold separately) feature the CoolPack design with a special heat-conductive housing and ribbing that cools them by drawing out heat, providing battery life up to 100% over Lithium-ion batteries without the CoolPack design
TECHNICAL DATA
Specifications
Battery Chemistry
Lithium Ion
Battery/Charger
Not Included
Bevel Angle Range
45°
Case Type
No Case Included
Charger
Not Included
Dust Blower
Yes
Height
7.48"
Jig Saw Blade Type
Jig Saw T-Shank
Length
10.24"
Max. Bevel Capacity (°)
45.0
Max. Capacity in Steel
3/8"
Max. Capacity in Wood
3-1/2"
No Load SPM
0-2,700
Separate On/Off Speed Control
No
Stroke Length (in)
1.0
Weight
4.1lb
Width
3.0"
Works With
Jig Saw Guide JA1010Steel Overshoe for Footplate JA1011Anti-Splinter Insert JA1013
