Thermal Economy Hualian Plastik Kecil Smi One-step Multi Tape l Shape Sealing Sealet Tunnel Shrink Package Wrap Machine System

Thermal Economy Hualian Plastik Kecil Smi One-step Multi Tape l Shape Sealing Sealet Tunnel Shrink Package Wrap Machine System

Precio habitual $4,000.00 USD
Precio habitual $4,000.00 USD Precio de oferta $4,000.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SPECIFICATIONS

After-sales Service Provided: Online support,Video Technical Support,Free Spare Parts,Field installation, commissioning and training,Field Maintenance and Repair Service

Voltage: 220V, 380V

Weight (KG): 400

application: Food,Beverage,Commodity,Chemical,Machinery & Hardware,Clothing,Textiles

automatic grade: Automatic

brand name: flowpack

core components: Gear,Motor,Engine,Bearing

driven type: Electric

key selling points: Long Service Life

machinery test report: Provided

packaging material: Wood

packaging type: Case

place of origin: Zhejiang, China

video outgoing-inspection: Provided

warranty: 2 Years

thermal economy hualian plastik kecil smi one-step multi tape l shape sealing sealet tunnel shrink package wrap machine system

Product Description

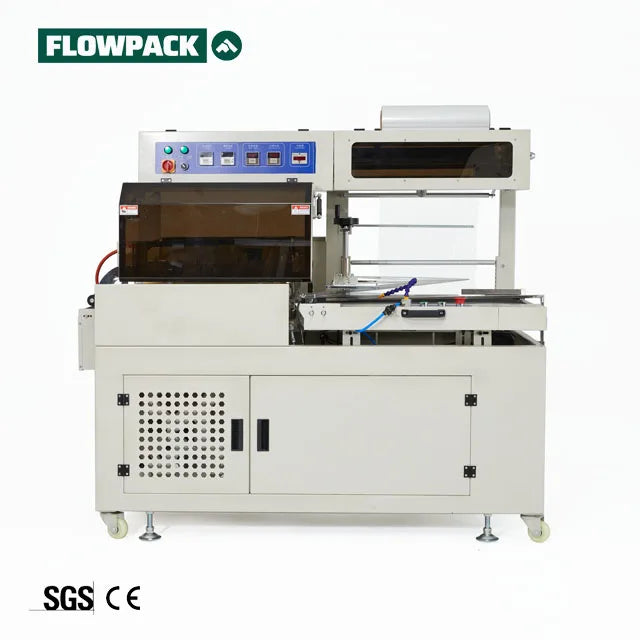

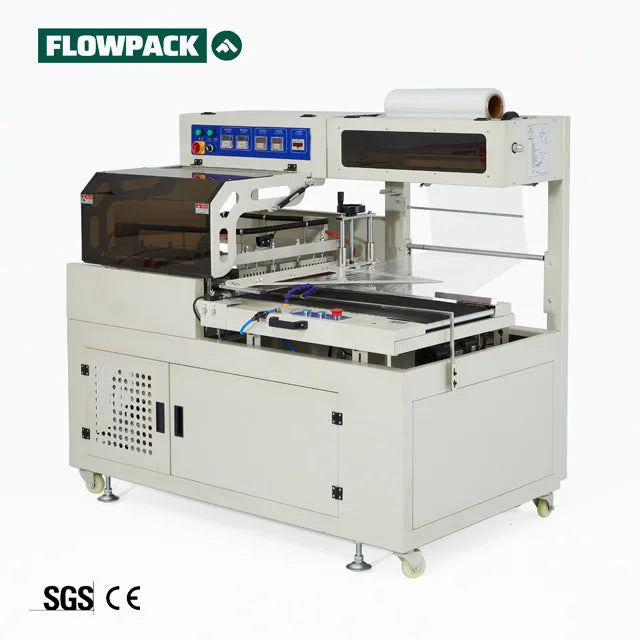

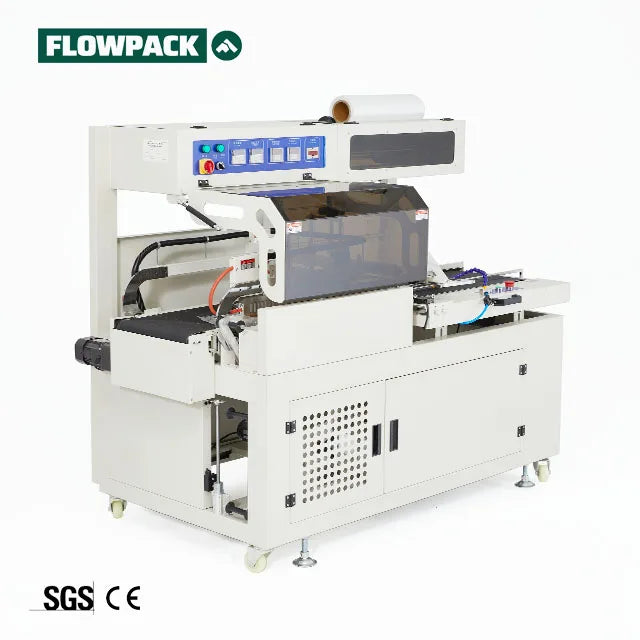

QL-5545 L-bar sealers use center fold film to protect your products from moisture and dust, and give them an attractive, professional looking for promotion.

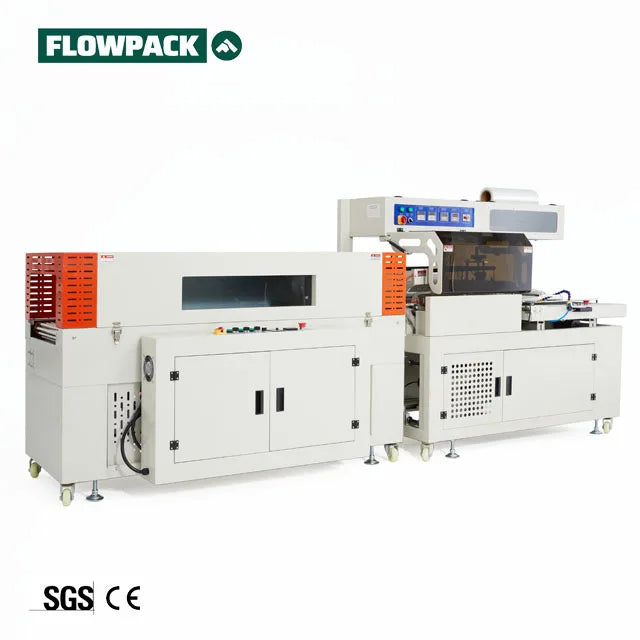

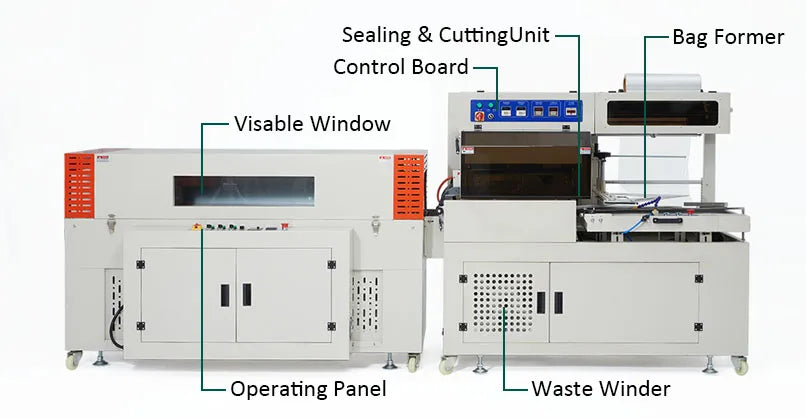

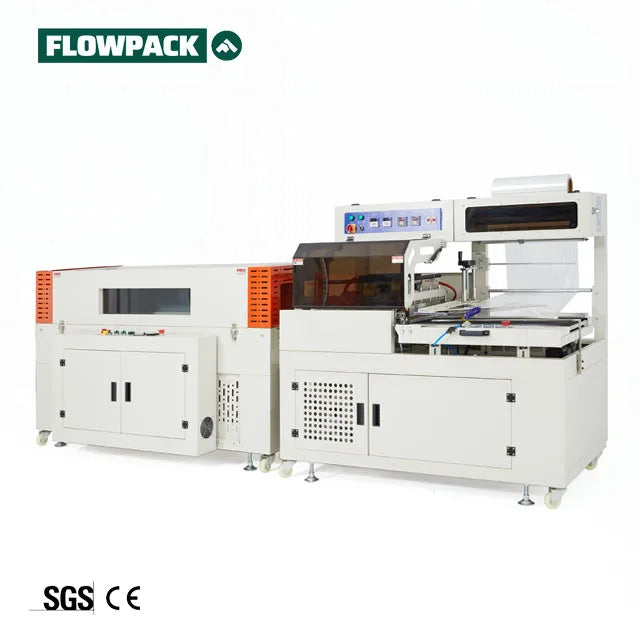

The machine consists of an automatic L bar sealing machine and a heat shrinking tunnel, to wrap products into packages, and shrink packages automatically with high efficiency, the max. speed is 30 packages per minute.

.jpg

Technical Parameter
Item No. QL-5545
Power 220V,AC,50/60HZ,2.0KW
Capability* 0-30 PPM
Sealing Time 0.2-1 S
Film Thickness 0.012-0.06 mm
Film Material POF
Air Pressure 5-6 kg/cm2
Max. Sealing Size L550* W450 mm
Max. Packaging Size H<140, L+2H<550, W+2H<450 mm
Dimensions L1760*W940*H1580 mm

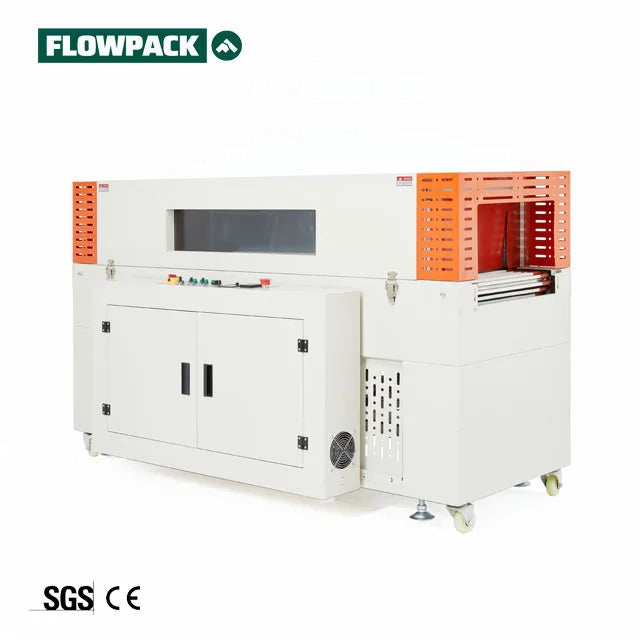

Item No. BSN-4525
Power 380V,3Ph,50/60HZ,12.8KW
Capability* 0-25 m/min
Max. Load 10 kg
Tunnel Dimension L1200*W450*H250 mm
Machine Dimension L1600*W720*1450 mm
/ /
/ /
/ /
/ /
Feature & Detail

Teflon coated, thermostable and anti-sticky aluminum alloy cutter ensures good sealing without cracking, coking and smoke pollution.

Horizontal and vertical photo-eyes detect products, ensure the machine wrap the products in suitable-size bags according to their dimensions.

Easy to Change-over packed products, the package size can be adjusted without tooling, and adjust wasted film winding speed automatically.

The digital temperature controller with PID ensures the sealing temperature is sensitive and accurate. The temperature is adjustable according to film thickness and material.

The blade self-protects from accidental cutting, and avoid to damage the product.

The safety guard on the sealing unit ensures the safe of operator.

Wrap multi-piece products in one package for promotion.

Connect with production line easily, "no product, no package".

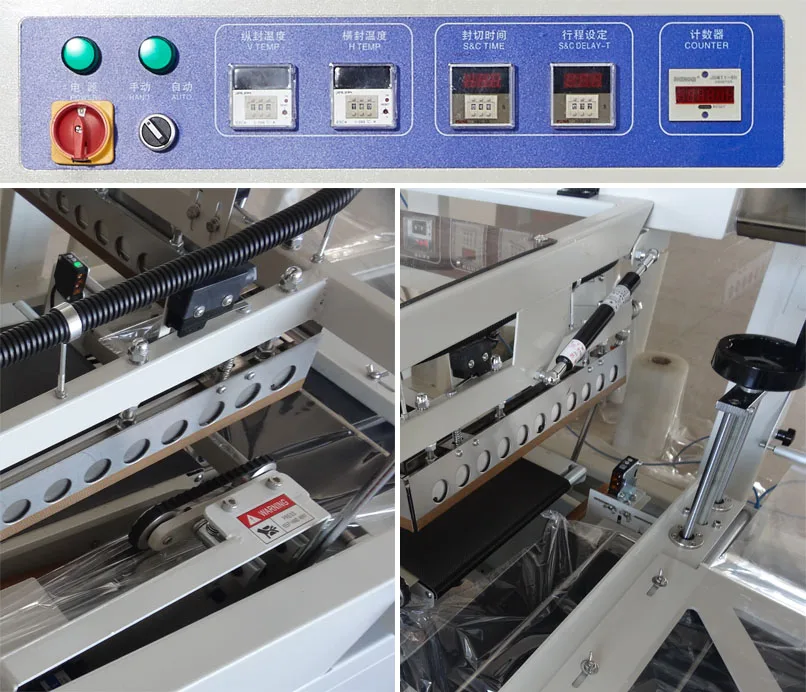

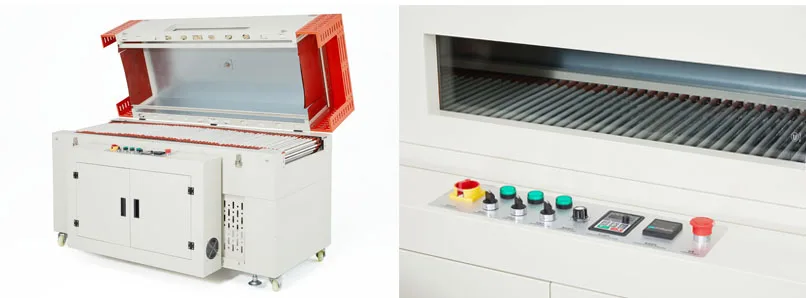

L bar sealer.jpgheat shrink machine.jpg

Optional Features

Elastic conveyor for small or thin products.

Easy-tear mouth for special requirement.

Organizer for multi-piece products.

Applications

QL-5545 BSN-4525 L bar shrink wrap machine is widely used in various industries including food, printing, pharmaceutical, electronics, hardware and many other industries that require shrink packaging. It is suitable to wrap the products with POF, PE, PVC and other packaging materials.


Package

- After inspection, the machines are wrapped with plastic film, and packed in seaworthy ply-wooden cases.


Certificates

- ISO9001:2008 certified company.

- Our flow packing machines are CE-certified.

- We had 29 patents in the last five years.

Why Choose Us

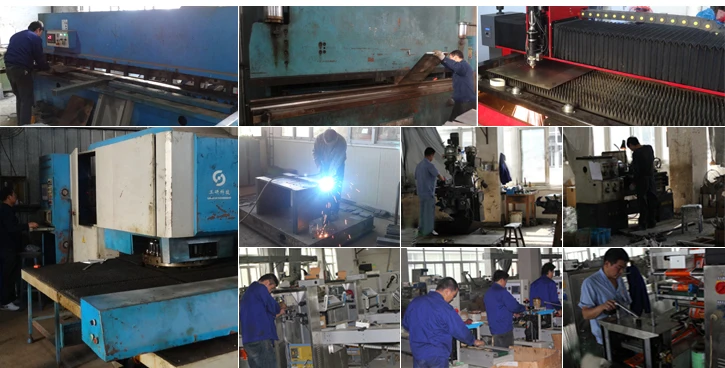

flowpack factory.jpg

With more than 20 years of expertise and experience.

Embrace flexibility and professionalism.

No lowest price but always value for money.

We treat our staff and suppliers as respectful partners.

We keep stock of electronic components, touch displays, motors, etc. ready for immediate delivery.

Provide customized services for special orders according to specifications.

Long-term customers are happy customers and repeated customers: The goal of our activities is the long-term satisfaction of our customers through the supply of easy-use and reliable equipment.

Customers/Reference

Flowpack has a renowned long-standing reputation for designing and manufacturing reliable packaging equipment and solutions. Proven with daily use for production in many foods and non-food industry companies worldwide, we can ensure the best performance and results.

We are proud to serve leading companies from a variety of fields for more than 20 years with our outstanding products and services.
